Manufacturer Chicken Feeds Pellet Machine Poultry Feed Pellet Machine

Product Description

Manufacturer Chicken Feeds Pellet Machine Poultry Feed Pellet Machine
Product Description
Introduction
CM series animal feeds pellet machine is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for checmical industry, fertilizer and industry and sugar industry.
Feature
1. Drive mechanism adopts high strength belt, with steady running and low noise;2. Drive mechanism adopts high quality bearing to ensure high speed and stable operation;3. Feeding part is equipped with a permanent magnet to remove metallic impurities; this prolongs the service life of main parts and meanwhile reduce the use of auxiliary equipment.

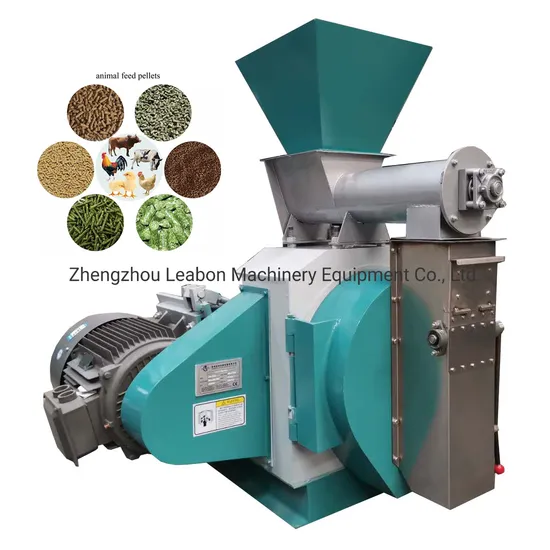

Product Show
Application
The Raw Material could be corn, soybeans, fish meal, grass, alfalfa, straw etc materials.
The Final Products can feed for cattle, sheep, rabbit,chicken, duck, etc.
Spare Part of Feed Pellet Machine
Product Parameters

Paramter/Model	CM-15A	CM-20A	CM-25A
Output(kg/h)	100-200	500-700	1000-1200
Power(kw)	3	11	22
Revolving Speed of ring die(r/min)	420	306	306
Inside diameter of ring die(mm)	150	200	250
Pellet diameter(mm)	Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8
Dimension(m)	0.75*0.45*0.8	1.1*1.15*1.25	1.1*1.15*1.25
Weight(kg)	175	500	625

Model No.	CM-20B	CM-25B	CM-30B
Output(kg/h)	500-700	1000-1500	1500-2000
Power (kw)	11	22	30
Feeding motor(kw)	0.75	0.75	0.75
Revolving Speed of ring die (r/min)	306	306	330
Inside diameter of ring die(mm)	200	250	304
Pellet diameter(mm)	Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8
Dimension(m)	1.1*1.5*1.52	1.1*1.15*1.25	1.35*1.3*1.6
Weight(kgs)	580	710	960

Parameter/Model	CM-20C	CM-25C	CM-30C	CM-35C
Output(kg/h)	600-800	1000-2000	1500-2000	3000-4000
Power (kw)	11	22	30	37
Feeding+Conditioner motor(kw)	0.75+1.1	0.75+1.1	0.75+1.1	0.75+1.5
Revolving Speed of ring die (r/min)	306	306	330	306
In-side diameter of ring die(mm)	200	250	304	350
Pellet diameter(mm)	Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8
Dimension(m)	1.1*1.86*1.6	1.1*1.86*1.6	1.35*1.88*1.65	1.5*1.3*1.8
Weight(kgs)	720	900	1035	1200

CE Certification
Packaging & Shipping
Packing Details: International standard packaging of Feed Processing Machines.
Delivery Time: Shipped in 7-15 days after payment.
Good serive
Pre sale service 1.Consult our customers to understand their requirements.
2.Advise our customers.
3.Provide flow chart to customers.
4.Help complete the project.
After-sale service
1.Provide technical documents in time.
2. Send engineers to the customer's site to install the equipment, train employees on how to operate and maintain equipment.
3.Provide spare parts for customers.
Company Profile
Zhengzhou Leabon Feed Machinery Co., Ltd. is a professional and advanced supplier which mainly supply feed equipment like feed hammer mill, feed mixer, pellet machine, granule crumbler, pellet cooler, packing machine and entire feed pellet production line. Leabon has extensive expertise in the areas of engineering. The continuous research helps us to develop the latest technology in biomass new energy field more effectively.

---
