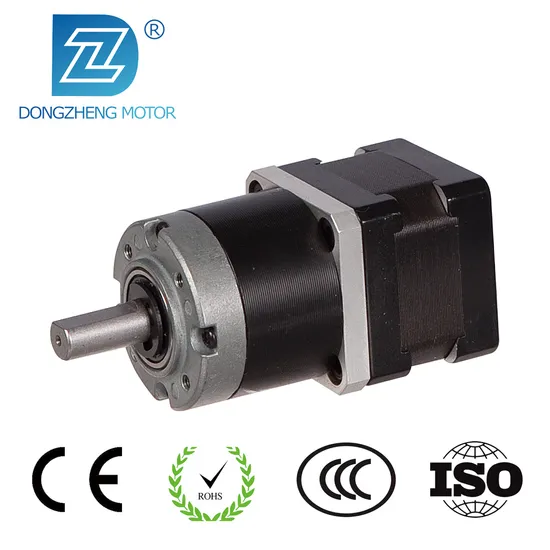

36mm/35mm Planetary Gearbox Stepper Motor Auto Parts for Industry

US$18.00-27.00 1 Piece (MOQ)

Basic Info.

Model NO.
36JXES60K 35STH
Excitation Mode
Excited
Function
Control, Driving
Casing Protection
Closed Type
Number of Poles
8
Structure and Working Principle
Stepping
Type
Hybrid
Certification
ISO9001, CCC
Brand
Dongzheng
Gearbox & Motor Dia
36mm &35mm
Transport Package
CTN/Plt
Trademark
DZ
Origin
China
HS Code
8501310000

Product Description

36JXES60K/35STH Ring gear can be selected within the two materials: Powder metal ( Type:36JXF60K ) , Metal( Type:36JXE60K )
Planetary Gearbox
Ring material E : Metal/ F :Powder metal
Bearing at out put Ball bearings
Max. Radial load(10 mm from flange) ≤50 N
Max. shaft axial load ≤30 N
Radial play of shaft (near to flange) ≤0.07 mm
Axial play of shaft ≤0.3 m m
Backlash at no- load ≤1.5°

35STH Hybrid Stepping Motor Specifications

Model No

Rated
Voltage

Current
/Phase

Resistance
/Phase

Inductance
/Phase

Holding
Torque

# of
Leads

Rotor
Inertia

Weight
L1 Length L1
Max Gear Ratio
Single Shaft V A Ω mH g.cm g-m² G mm
35STH28-0504A 10 05 20 14 1000 4 11 140 28 ≤1:264
35STH36-1004A 2.7 10 2.7 4.3 1400 4 14 180 36 ≤1:189

A -Single Shaft, B- Double shaft
36JXES60K Planetary Gear box Specifications
Reduction ratio 3.71 5.18 14 19 27 51 71 100 139
Number of gear trains 1 2 3
(L2) Length( L2) mm 27.0 34.1 41.0
kg.c m
Max rate d torque
18 30 48
kg.c m Short time permissible torque 54 90 144
Efficiency % 90% 81% 73%
Weight g 195 210 290

Dimensions (mm) Rated Voltage (VDC) Current / Phase
(A)
Reduction Ratio Holding Torgue (g.cm)
22 3.9-4.32 0.6-0.8 1:3.71-1:369 180-300
28 3.4-4.4 0.95 1:3.71-1:369 750-900
36 2.7-12 0.31-1.33 1:3.71-1:139 1000-2200
42 2.8-12 0.4-1.68 1:3.5-1:294 1600-3600
52 2.8-12 0.4-1.68 1:4.5-1:162 2600-4400
56 1.9-6.6 1.0-2.8 1::3.6-1:326 390-12600

Features:
Stepping motors come in a wide range of angular resolution.The coarsest motors typically turn 90 degrees per step,while high resolution permant magnet motors are commonly able to handle 1.8 or even 0.72degrees per step.With an appropriate controller,most permanent magnet and hybrid motors car be run in half-steps,and some controllers can handle smaller fractional steps or microsteps.
