Product Description

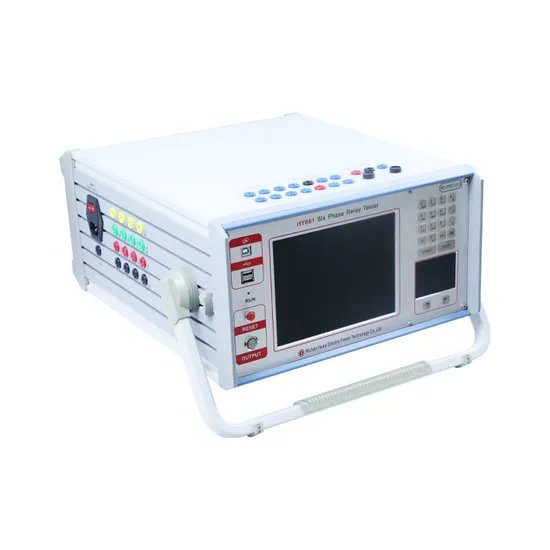

Six Phase Relay Protection Tester Microcomputer Protection Relay Test Set
Product Description
Relay protection device tester is in reference to the Ministry of Electric Power issued by the DL/T624-1997 "microcomputer-type relay protection test device technical conditions" on the basis of a wide range of user views, summed up the advantages and disadvantages of similar products, the full use of modern advanced microelectronics technology and devices to achieve a new type of miniaturised microcomputer relay protection tester.
DSP + FPGA structure, true 16-bit DAC output, built-in new modular high-fidelity linear high-power amplifier With 8.4-inch resolution of 800 × 600 TFT true-colour display and industrial keyboard and mouse Win7 operating system, GPS synchronous test function, USB interface directly and PC communication function, etc. Product Parameters Relay protection device tester is in reference to the Ministry of Electric Power issued by the DL/T624-1997 "microcomputer-type relay protection test device technical conditions" on the basis of a wide range of user views, summed up the advantages and disadvantages of similar products in the country, the full use of modern advanced microelectronics technology and devices to achieve a new type of miniaturisation of the microcomputer relay protection tester. This microcomputer relay protection tester adopts the advanced structure of stand-alone independent operation and can also be connected to a laptop computer operation. Instrument host using DSP + FPGA structure, true 16-bit DAC output, built-in new modular high-fidelity linear high-power amplifier, with 8.4-inch resolution of 800 × 600 TFT true-colour display, as well as an industrial keyboard and mouse. win7 operating system, powerful. Small size, high precision. Both with large tester superior performance, advanced features, but also has a small tester small and flexible, easy to operate, high reliability, high performance-price ratio. It is a good tool for relay workers.
AC Current Source

Amplitude range:	6×(0-30A)/ph Accuracy:0.2%
Six-phase current parallel output maximum value:	180A
Phase current long time working permit value:	10A
Power:	300VA/Ph
Six-phase parallel maximum power:	900VA
Six-phase current parallel working time under max output:	10s
Frequency range:	0-1000Hz; Accuracy:0.001Hz
Harmonic times:	2-20 times;Phase:0-360°; Accuracy:0.1°

DC current source:

Amplitude:	20A/ph
Power:	300VA/ph
Accuracy:	0.5%

AC voltage source:

Amplitude range:	6 ×(0-125V)
Accuracy:	0.2%
Line voltage range:	0-250V
Phase voltage/line voltage output power:	70VA/100VA
Frequency range:	0-1000Hz
Accuracy:	0.001Hz
Harmonic times:	2-20 times
Phase:	0-360°
Accuracy:	0.1°

DC voltage source:

Phase voltage output amplitude:	0-±150V
Accuracy:	0.5%
Line voltage output amplitude:	0-±300V
Phase voltage/line voltage output power:	90VA/180VA

Binary:

Binary input:	8 pairs
Idle contact:	1-20mA,24V with power output built-in device
Potential reversal:	0-6VDC low level 15-250VDC High level
Binary output:	4 Paris,Idle contact
interrupting capacity:	110V/2A,220V/1A

Time test range:

Range:	1ms~9999s;
Test accuracy:	1ms

Packing details:

Size:	600 (mm)×450 (mm)×250 (mm) ;about 30Kg
Power:	AC220V±10%;50Hz/60Hz 10A

Detailed Photos
Company Profile
HY has been in the market more than 19 years from 2005.Specified on all kinds of HV electrical testing equipment.Like transformer tester,ac dc hipot tester,hv hipot tester,relay protection tester,circuit breaker analyzer,contact resistance tester,insulation oil.gas analyzer ect.We are real factory to produce these hv testing equipment.Electrical solution and technical support could be provided too. Customer Visit

---
