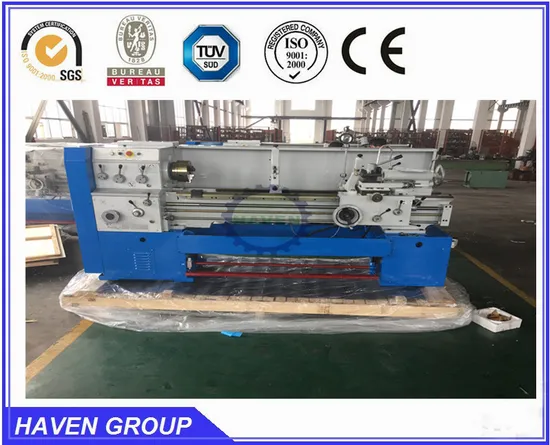

CQ6240X1000 Light Mini Lathe Machine
*Rrecision ground and supersonic frequency hardened bed ways.
·The spindle is supported with precision roller bearing.
·Strong power motor suited for heavy duty cutting.
| SERIES |
| Model | CQ6236×1000 | CQ6240×1000 |
| Swing over bed | Φ360mm(14 11/64") | Φ400mm(15 3/4") |
| Swing over cross slide | Φ210mm(8 1/4") | Φ250mm(10") |
| Swing in gap(D×W) | 480mm×100mm | 520mm×100mm |
| Height of center | 180mm(7 3/32") | 200mm(7 7/8") |
| Distance between centers | 1015mm | 1015mm |
| Width of bed | 218mm(8 9/16") | 218mm(8 9/16") |
| Max. section of cutting tool | 20mm×20mm | 20mm×20mm |
| Total travel of cross slide | 230mm | 230mm |
| Total travel of top slide | 120mm | 120mm |
| Spindle bore | Φ52mm(2 3/64") | Φ52mm(2 3/64") |
| Spindle nose | D5 | D5 |
| Spindle morse taper in nose,in sleeve | M.T.#6/M.T.#4 | M.T.#6/M.T.#4 |
| Spindle speeds number | 2×9 (18) | 2×9 (18) |
| Spindle speeds range | 65-1800 R.P.M | 65-1800 R.P.M |
| Leadscrew diameter&thread | 24mm×4 T.P.I or pitch 6mm | 24mm×4 T.P.I or pitch 6mm |
| Threads imperial pithches | 4-60 T.P.I | 4-60 T.P.I |
| Threads metric pithches | 0.4-7mm | 0.4-7mm |
| Longitudinal feeds(imperial/metric) | 0.0021"-0.0508"/0.0527mm-1.2912mm | 0.0021"-0.0508"/0.0527mm-1.2912mm |
| Cross feeds(imperial/metric) | 0.00043"-0.0109"/0.011mm-0.276mm | 0.00043"-0.0109"/0.011mm-0.276mm |
| Total travel of tailstock quill | 110mm | 110mm |
| Tails stock quill | Φ52mm(2 1/64") | Φ52mm(2 1/64") |
| Taper tailstock quill | M.T.#4 | M.T.#4 |
| Spindle drive motor | 2.0HP | 2.0HP |
| Coolant pump motor | 4/75HP(40W) | 4/75HP(40W) |
| Machine dimension | overall package 1830mm×770mm×1280mm
split package 1830mm×770mm×680mm | Overall package 1830mm×770mm×1300mm split package 1830mm×770mm×700mm |
| Packing dimension | overall package 1940mm×890mm×1545mm split package 1940mm×890mm×1045mm | overall package 1940mm×890mm×1545mm split package 1940mm×890mm×1045mm |
| N.W | overall package 680KG split package 600KG | overall package 760KG split package 670KG |
| G.W | overall package 790KG split package 700KG | overall package 840KG split |
