Disc Pan Organic Fertilizer Granulator, Fertilizer Granulator Machine, Disc Granulating Machine

Product Description

Disc Organic fertilizer granuling machine
Introduction of Disc Organic fertilizer granuling machine :
This disc granulator is a kind of fertilizer equipment, mainly used to process fertilizers into specific shapes. Particles processed by this granulator are of the same size. This disc granulator has the features of simple structure, high granulating efficiency, reliable performance, easy operation, and longer service life, etc. This disc granulator is widely used in gold concentrator, coal mine, chemical plant, construction and foundry for quantitative and even feeding, and also suitable for conveying of materials with granularity less than50mm.
Working Principles of Disc Organic fertilizer granuling machine :
1.The pulley and the belt are driven by the main motor and the pinion is driven by the reduction gear.
2.The pinion gear is split with the large gear fixed at the bottom of the disc, and they mesh with each other and work in opposite directions.
3.The large gear is mounted on the granulation disc fixed on the frame adjustment plate through a professionally designed tapered hole.
4.The granulation disc is continuously rotated, and the spray device is used to evenly bond the materials together to form a spherical shape.
5.In addition, an automatic material feeding system is designed on the upper part of the granulation tray to prevent the material from sticking to the wall, thereby greatly improving the service life of the machine.
6.As the motor continuously rotates and the material continuously enters, mass production can be realized to meet the needs of the user.
Advantages of Disc Organic fertilizer granuling machine :
1.The disc organic fertilizer granulator is one of the common fertilizer industry equipments.
2. It is applied to the medium or low concentration, small-scale production. The disc is set and adjusted between 40 °-55 °.
3. The fertilizer granulator is derived by motor reducer gear to join mixed good materials fertilizer.
4. Because of the force of gravity, it rises and scrolls down. Under the above several action and forces of plate material, the products gradually are shaped into size, then output by the round plate.
5. The disc organic fertilizer granulator has a high granulating rate, high strength, round particles, anti-corrosive, easily operated and convenient maintenance.
Parameter of Disc Organic fertilizer granuling machine :

Model	Disc diameter	Disc edge height	Speed	Volume	Powder	Capacity
ZL25	2500mm	500mm	13.6r/min	2.5m³	7.5kw	1-1.5t/h
ZL28	2800mm	600mm	13.6r/min	3.7m³	11kw	1-2.5t/h
ZL30	3000mm	600mm	13.6r/min	4.2m³	11kw	2-3t/h
ZL32	3200mm	600mm	13.6r/min	4.8m³	11kw	2-3.5t/h
ZL45	4500mm	600mm	12.28r/min	6.1m³	37kw	10t/h

Detailed Photos

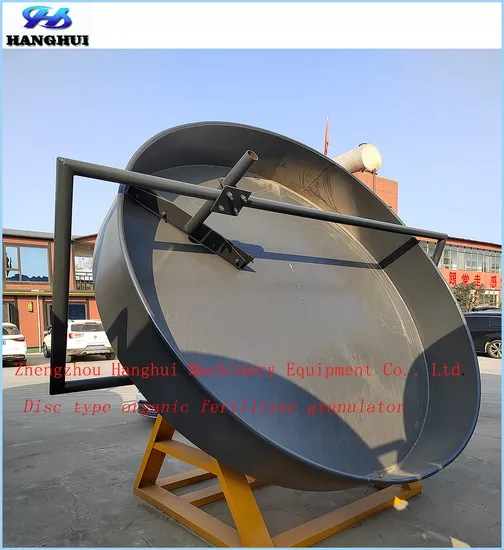

Detailed pictures of Disc Organic fertilizer granuling machine :
Packing and Shipping of Disc Organic fertilizer granuling machine :

---
