Chemical Corrosion Resistance En857-1sc Single-Layer Compact High Pressure Steel Wire Hydraulic Hose

Product Description

Chemical Corrosion Resistance EN857-1SC Single-Layer Compact High Pressure Steel Wire Hydraulic HoseProduct Description

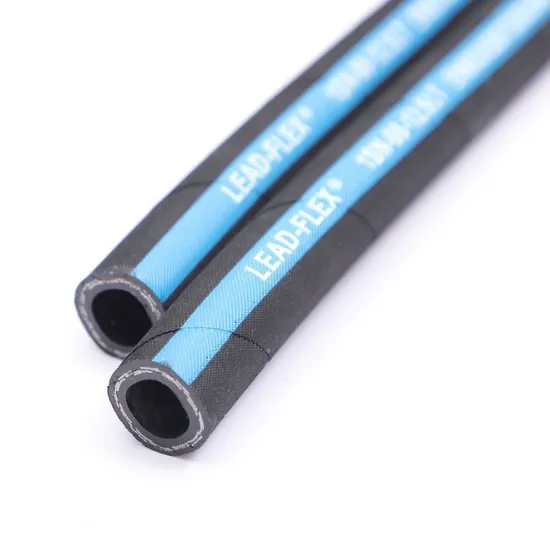

The compact one-layer steel wire braided hydraulic hose consists of three main structures: inner layer, reinforcement layer, and outer layer.
The inner layer is usually made of oil-resistant synthetic rubber, which can effectively prevent fluid leakage and ensure sealing. The reinforcement layer is composed of a layer of high-strength steel wire braiding, which provides the main pressure-bearing capacity of the hose, enabling it to withstand medium pressure. The outer layer is oil-resistant and weather-resistant synthetic rubber, which has good wear resistance and anti-aging properties, protecting the service life of the hose in harsh environments.
This hose has a small bending radius, which is convenient for installation and piping in space-constrained environments. Its compact design allows the hose to have good flexibility while maintaining high strength and pressure resistance and can adapt to complex pipeline layouts. In addition, the compact one-layer steel wire braided hydraulic hose also has good chemical resistance and temperature resistance and can work stably in a temperature range of -40ºC to +100ºC.The compact one-layer steel wire braided hydraulic hose is widely used in medium-pressure hydraulic systems and is suitable for conveying petroleum-based and water-based hydraulic oils, lubricating oils, and other media. It is often used in engineering machinery, mining equipment, construction machinery, and other fields, such as hydraulic systems of hydraulic supports, excavators, and other equipment.
Product Parameters

Product Series	Nomnal Dlameter	Size	(ID)mm		(W.D)mm		( O D ) mm		W.P	B.P	Min.B.R	W.T
	mm	inch	min	max	min	max	min	max	Mpa	Mpa	mm	Kg/m
1SC-04-06	6.3	1/4"	6.1	6.9	9.6	10.8	11.8	13.2	22.5	90.0	75.0	0.18
1SC-05-08	8	5/16"	7.7	8.5	10.9	12.1	13.1	14.5	21.5	86.0	85.0	0.20
1SC-06-10	10	3/8"	9.3	10.1	12.7	14.5	15.1	16.5	18.0	72.0	90.0	0.27
1SC-08-12.5	12.5	1/2"	12.3	13.5	15.9	18.1	18.9	20.3	16.0	64.0	130.0	0.35
1SC-10-16	16	5/8"	15.5	16.7	19.8	21.0	21.9	23.3	13.0	52.0	150.0	0.42
1SC-12-19	19	3/4"	18.6	19.8	23.2	24.4	25.6	27.2	10.5	42.0	180.0	0.54
1SC-16-25	25	1"	25.0	26.4	30.7	31.9	33.2	34.8	8.8	35.2	230.0	0.78

Detailed Photos
High Pressure Capability
These hoses are designed to withstand high hydraulic pressures, making them suitable for applications where high pressure is required.Flexibility
Despite the high pressure capacity, these hoses are flexible and easy to bend, allowing for easier installation and use in various applications.Durability
The steel wire braided reinforcement provides added strength and durability to the hose, enhancing its resistance to wear, abrasion, and punctures.Resistance to External Factors
These hoses are resistant to oil, weather, and other external factors, making them suitable for use in harsh environments.Wide Temperature Range
Compact one layer wire braided hydraulic hose can operate effectively in a wide temperature range, making them versatile for different applications.Company Profile
FAQ
Q1. What are your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and have a good relationship?
A:1. We keep good quality and competitive prices to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

---
