High Frequency Metal Ceramic Vacuum Tube Electronic Triode (FU-947F)

Product Description

7T85RB, it is metal ceramic structure, carbonization thorium tungsten cathode triode, cooled by forced air. The max working frequency 110MHz, the max anode dissipation power 2.5kW, the max anode output power 5.1kW, the tube is mainly used as the oscillator in industrial high frequency heating equipments. Electrical Characteristics

Filament Voltage	6.3V
Filament Current	35A
Cutoff voltage	-175V
Transconductance	≥5mA/V
Amplification factor	21
Interelectrode capacitances
Grid -filament	15pF
Anode-grid	13pF
Anode - filament	0.5pF
Operating position	Vertical
Cooling	Forced air
Air flow rate anode	250m³/h
Inlet air temperature	45ºC
Max Diameter	132mm
Max Height	219mm
Weight	1.5kg

Dimension(mm)

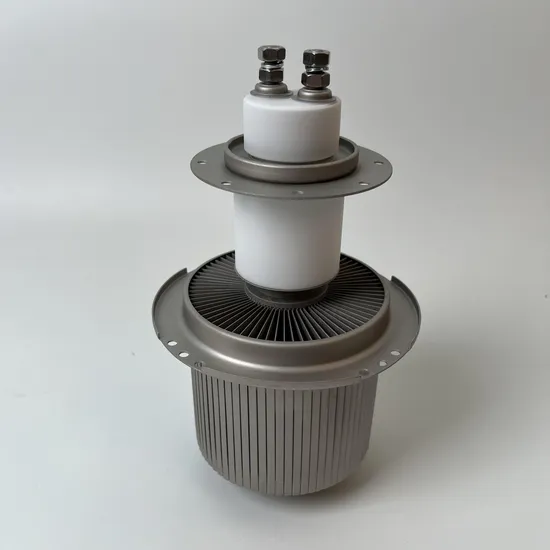

Product Picture
Limit Working Conditions:

Frequency	110MHz
Anode Voltage	8kV
Anode dissipation	2.5kW
Grid dissipation	130W
Max filament voltage	6.3V
Min filament voltage	5.7V
Min warm up time	2min

Typical Operation:

Frequency	30MHz
Anode voltage	7.5kV
Anode current	(0.9-1) A
Output power	5.1kW

Caution for the use: While move and install the Electron Tube, should be put very carefully, strong vibration and been struck is forbidden. Electron Tube should be stored in the dry place, the temperature should above -5ºC. For long-term preservation, it should be better sealed in plastic bags and put some dry desiccant in. The filament voltage should be accurate measured, the variation should not beyond 2%(<2%). Must turn on the cooling system before set up an electric circuit. It should keep turn on the cooling system for 15 minutes after power off. The dust in the cooling air duct system should be cleaned up regularly. The water should keep good quality. The filament should preheat 30 minutes. The preheat time should be more than 60 minutes for the long-term been storage Electron Tube and first time used Electron Tubes. Product Description
7T85RB,FU-947F is a High frequency metal ceramic Electronic tube triode designed specifically for industrial applications. This tube uses a coaxial design and metal-ceramic technology. This tetrode may be operated in CW or pulse modes.
For operation in pulse mode, the parameters depend on each equipment characteristics.
We manufacture the following all models.
FC-10FA, FC-10FT, FC-732F, FC-735F, FC-735FT, FC305F, FC311, FC312F, FC620F, FC620FT,FD911S, FD003Z, FD-5S.
FC10FT, FC201F, FC307F, FC307FS, FC308C, FC310C, FC310F, FC502F, FC732F, FC734F, FC735F.
FU-33, FU-833A, 833A, 833C, FU-74F/RY-74B, FU-100F, FU-728F, FU-113F, FU-113FG, FU-998F, FU-5S, FU-62S, FU-610F, FU-610FA, FU-610S, FU-724F, FU-724S, FU-727F, FU-824F, FU-824FA, FU-832F, FU-834F, FU-834FA, FU-836F, FU-924F,FU-924FA,FU-928F,FU-101F,FU-101M,FU-101Z,FU-101C,FU-832C,FU-832FA, FU-832F,FU-832M, FU-917F,FU-917M, FU-307S, FU-74F, FU-250F, FU-252F, FU-946F, FU-947F FU611F, FU612F, FU613F, FU001F, FU104C, FU104Z, FU115F, FU116F, FU252F, FU615F, FU616C, FU617F, FU618F, FU720F, FU820C,FU820F, FU002F, FU617FT, FU-84F, FU-74F, FU-1608C, FU-1608F.
GU84B, GU74B, GU78B.
FM70FT,ML8533, ML8536,YU191B, YU191C, YU-148, YU-108,, YU-148, YU-191B,YL1050, YL1057, YL1631, YL1420,YD1202, YD1212.
BW1184J2F, BW1185J2F, BW1184J, BW1185J, BW1184J2, BW1185J2, BW1608J2F, BW1608J.CQK25-2,CQK50-2.
3CX4500H3,3CX6000A7,3CX2500H3,3CX2500A3,3CX2500F3,3CX3000A7,3CX3000F7,3CX1500D3,3CX10000D3,3CX10000A3,3CX10000A7,3CX10000H3,3CX15000A3,3CX15000A7,3CX15000H3,3CX20000H3,3CX20000A7,3CX800A7,3CPX800A7,3CX1500A7,3CPX1500A7,3CX5000A7,3CPX5000A7,YU-158.
YC-156,YC-156A,YC-179,YC-236,YC-257.
3CW5000F1,3CW5000F3,3CW40000H3,3CW45000H3,3CW20000A7,3CW20000H3,
3CW20000H7,3CW30000H3,3CW30000A7,3CW30000H7.
3CX2500A3,3CX2500F3,3CX2500H3,3CX3000A7, 3CX1500A7, 3CW20000A7.
4CX250B, 4CX250R, 4CX250FG, 4CX800A/RY-74B, 4CX800A, 4CX350A, 4CX350F, 4CX1000A,4CX1500B,4CX3500A,4CW1000A,4CX1500A,4CX3000A,4CX5000A,4CX5000R,4CX7500A,4CX10000D,4CX10000J,4CX15000A,4CX20000C,4CX20000D,4CX20000E,4CV100000C, 4CX250K, 4CX1500A, 4CX3000A, 4CX3500A, 4CX15000A, 4CV100000C, 4CX35000C, 4CX5000A,5CX1500A.
CTK12-4, CTK12-1, CTK15-2, CTK25-4, ITK12-1, ITK3-1, ITK5-1, ITK15-2, ITK30-2, ITK60-2, ITK70-2, ITK90-1, ITL12-1, ITL3-1, ITL5-1, ITL9-1, ITL15-2.
TH5-6, TH6-3A, TH382, TH382, TH584, TH338, TH331, TH537, TH527, TH327, TH582, TH558, TH610, TH375, TH576, TH373, TH328, TH347.
E3061, E3062, E3062E, E3069, E3130.
RS3060CL, RS3060CJ, RS3021CJ, RS3026CJ, RS3040CJ, RS3041CJ, RS3041CJ, RS3040CJ, RS3060CJC, RS3021, RS2048CJ, RS2048CJC, RS1034SK, RS1034SL, RS1072C, RS2054SK.
8560AS, 928F,836F, 8741, 7T85, 7T69, 8F75R, 7F71RA, 8F68R.
6T51, 6T58RA, 7T62R, 7T62RE, 7T85RB, FU-947F, 7T69RB, 7T84RB, 7T69RB, 8T25RA, 8T85B, 8T85RB, 8T87RB, 8F76R, 8T69JB.
SK300 Socket, SK1300 Socket, SK2210 Socket, SK184 Socket. Certifications
