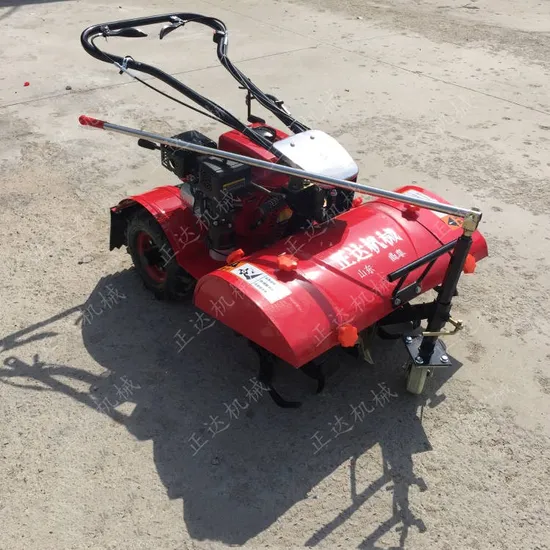

Orchard Trench Weeder Gasoline Micro-Cultivator for Farms

Product Description

Product Description
Product Parameters

GASOLINE MODEL
Item	170	177	190
Engine	7hp	9hp	12hp
Transmission type	Gear drive/belt drive
Start model	Manual/electric starter
Working width	500mm	≥960mm	1050-1350mm
Working depth	≥100mm	200mm	200mm
Size of wheel	400-8/350-6
Adjustment of handle bar	360 degree horizon and 45 degree vertical
Fuel consumption	≤10kh/ha
Fuel tank	5L
Weight(KG)	120	132	150
Working efficiency	o.1-0.2acre/h	o.1-0.2acre/h	0.3-0.4acre/h
Working speed	>0.3m/s
Package size	79*45.5*86cm	98*57*81cm	98*57*81cm
DIESEL MODEL
Item	173	178	186
Engine	7hp	9hp	12hp
Transmission type	Gear drive
Start model	Manual/electric starter
Working width	500mm	≥960mm	1050-1350mm
Working depth	≥100mm	200mm	200mm
Size of wheel	400-8/350-6
Adjustment of handle bar	360 degree horizon and 45 degree vertical
Fuel consumption	≤10kh/ha
Fuel tank	5L
Weight(KG)	164kg	178kg	182kg
Working efficiency	o.1-0.2acre/h	o.1-0.2acre/h	0.3-0.4acre/h
Working speed	>0.3m/s
Package size	79*45.5*86cm	102*57*81cm	102*57*81cm

A cultivator is a piece of agricultural equipment used for secondary tillage. One sense of the name refers to frames with teeth (also called shanks) that pierce the soil as they are dragged through it linearly. It also refers to machines that use the rotary motion of disks or teeth to accomplish a similar result. The rotary tiller is a principal example.
Cultivators stir and pulverize the soil, either before planting (to aerate the soil and prepare a smooth, loose seedbed) or after the crop has begun growing (to kill weeds-controlled disturbance of the topsoil close to the crop plants kills the surrounding weeds by uprooting them, burying their leaves to disrupt their photosynthesis or a combination of both). Unlike a harrow, which disturbs the entire surface of the soil, cultivators are designed to disturb the soil in careful patterns, sparing the crop plants but disrupting the weeds.
Cultivators of the toothed type are often similar in form to chisel plows, but their goals are different. Cultivators' teeth work near the surface, usually for weed control, whereas chisel plow shanks work deep beneath the surface, breaking up the hardpan. Consequently, cultivating also takes much less power per shank than chisel plowing.
Small toothed cultivators pushed or pulled by a single person are used as garden tools for small-scale gardening, such as for the household's own use or for small market gardens. Similarly sized rotary tillers combine the functions of a harrow and cultivator into one multipurpose machine.
Cultivators are usually either self-propelled or drawn as an attachment behind either a two-wheel tractor or a four-wheel tractor. Two-wheel tractors are usually rigidly fixed and powered via couplings to the tractors' transmission. For four-wheel tractors, they are usually attached by means of a three-point hitch and driven by a power take-off (PTO). Drawbar hookup is also still commonly used worldwide. Draft-animal power is sometimes still used today, being somewhat common in developing nations although rare in more industrialized economies.

---
