Biofuel Pellet Making Machine Biomass Pelletizing Machine

Product Description

Product Description

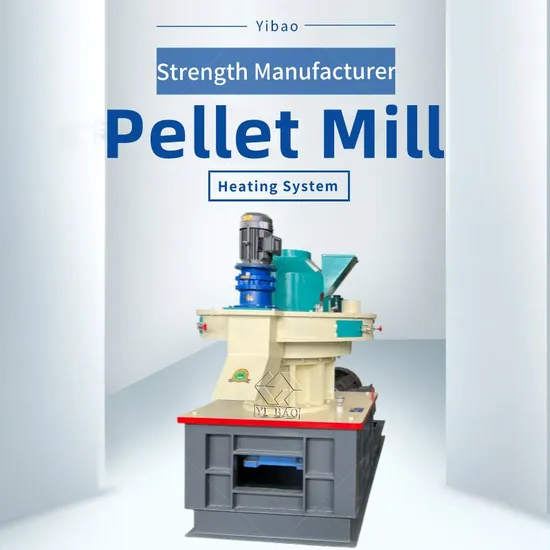

Pellet Mill is a kind of biomass energy pretreatment equipment. It mainly uses agricultural and forestry processing
waste such as wood chips, straw, rice husk, bark and other biomass as raw materials, and solidifies it into high-density
pellet fuel through pretreatment and processing.
Production Line
Wood chipper:Process logs into small chips within 20mm
Hammer mill:Processing of wood chips into sawdust less than 5 mm in size
Rotary dryer:Sawdust with a moisture content of no more than 18%
Wood pellet machine:Make dry sawdust into pellets
Cooler:Cools the pellets from70-90 ºC to room temperature
Packing machine:Pack the pellets into a plastic bag

Product Parameters

Model	YB-450	YB-550	YB-750	YB-900
Power(KW)	45	55	75	90
Spindle Speed(r/min)	1450	1450	1450	1450
Die diameter(MM)	400	450	500	550
Output Size(MM)	4-12	4-12	4-12	4-12
Granulation Temperature(ºC)	80-100	80-100	80-100	80-100
Raw material moisture(%)	15-25%	15-25%	15-25%	15-25%
Voltage(V)	380	380	380	380
Capacity(t/h)	0.6	0.8	1-1.2	1.2-1.5
Size(mm)	1400*750*1550	2600*1300*2300	3500*1600*3200	4600*2300*3800
Weight(T)	2.9	3.6	5.6	6.8

Finished Product
Factory Tour


Henan Yibao Machinery Equipment Co., Ltd. is specialized in researching developing and manufacturing
fuel particle equipment, wood crushing, large wood crusher, sawdust machine and other equipment, committed to
providing customers with a series of complete sets of equipment such as biomass crushing, hammer mill, drying,
molding, cooling packaging,etc.,providing customers with industry risk assessment, investment analysis, and
configuration and design solutions based on the on-site space of the customer's factory.
Our Team
Customer Feedback
Certifications

---
