Fine Grinding SMC Servo Motor Control Spring Grinding Machine

Product Description

Company Profile
SMC Series of CNC spring end grinding machine is mainly used in synchronized spring of double surface of compression spring,including cylindric spring,conical spring and double conical spring. The machine adopts two vertical grinding wheels to grind springs put on feeding plate which pass through two grinding wheels. Feeding speed of upper grinding wheel can be adjusted. Through manual feeding mode or automatic feeding mode spring can get the preset height,you can obtain the greatest capacity of grinding according to the pressure. The machine has automatic compensation,automatic reset,giving alarm function,through man-machine dialogue manner and programmed on the computer screen,convenient operation and high production efficiency,it is ideal equipment for mass springs double surface grinding.
Product Parameters

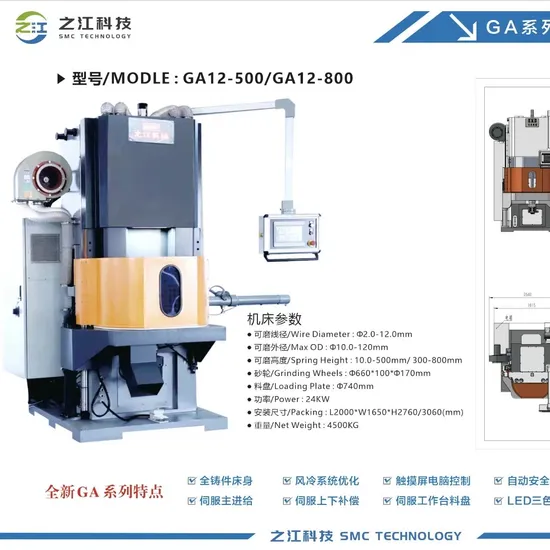

Machine model	GA12
wire diameter	2.0mm to 12.0mm
spring OD.	10.0mm to 120.0mm
spring height	10.0mm to 500.0mm
grinding wheel	660x100X170mm
loading plate	580mmX2
power	26KW/28KW
size	1650x2760x3060
weight	4500kg

Product Description
1. Remote free technical support by e-mail or telephone, or the supplier can assign the technicians to the customers' factory for the technical support if necessary. Machine Pictures and sample testing video will be sent for confirmation before packaging and delivery.2. SCM Joint Might team will always provide professional and patient consulting service to help clients find the suitable solution.3. Quick and safe shipment as per your requirement,such as the booking ,container loading, and shipping documents etc...4. SCM Joint Might will provide technical support by email and phone,technicians will be available at your side if necessary.5. One-year guarantee period exclude the easy torn parts. Certifications
Detailed Photos
Packaging & Shipping

Installation Instructions
Our Advantages
OUR ADVANTAGES:
1) For the trandition machine, they use the normal motor, which transfer the signal by encoder,so there will be some errors. But for servo motor, it can greatly help tp avoid such problem.

2)Servo motor control is more easy to operate, you can see the program on the operation screen more friendly.

3)When machine on, the SMC logo on the machine will light on, and if anything happens, it will turn to red.You can see the situation from long distance.

4)New cooling system, which can greatly help to remove the heating energy in time to avoid any possible burnt.

5)Safety door protection system, when machine cover is not in right position,machine can't start working.

6)The upper and lower compensation value is ±0.02mm,much more good than trandition machine.

7)Machine entire body is casting made, which requires high technology and not easy to out of shape, so the cost is high. When we get the casting body, we need the aging treatment to release the stress inside the casting, so machine performance will be more stable.

A good machine is not concerning about the software section, but also the mechnical section. For long time using, we need to keep the machine with good stability and long production time, that's why usually our machine is at least 2 month production time.

We are aiming to make good machine with good final surface, that;s why we can survive in the market for such a long time.
Any Consultations and Inquiries are welcome!
We strive to create a more powerful tomorrow for customers!

---
