Factory Price Automatic Eye Drop Filling Machine in Pharmaceutical Disposable Vape Oil Bottle/Vial Liquid Bottle Filling Sealing Capping Machine Filter with CE

Product Description

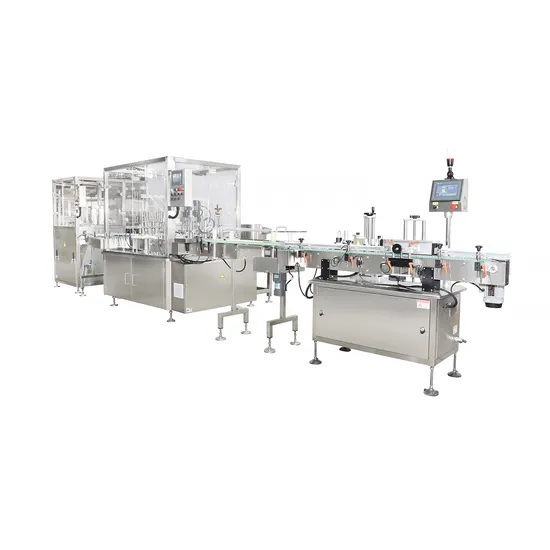

E-Liquids /Eye drop PET bottle Liquid Filling filling, plugging &capping Machine (with CE)
Product Description
now electronic cigarette( is a new electronic product with the same appearance and taste as cigarettes. It can refresh and satisfy the addiction, and can achieve the best effect of quitting smoking without pain .
Now are main manufature this kinds of filling capping machine in china
Our E-liquid filling sealing capping machine advantage:
1. function suitable production line
Bottle in-feeding → filling→ (plugging)→ cap placing→ capping →bottle out-feed
2.high filling precision:≤±1%
3.Filling range and production capacity:80pbm (according to 10ml PET bottle)
4. Qualified rate:≥99.9%
5. Save electricity : Power:220V 50HZ;total output:≤1.2kw
6. Use high quality SS316 stainless steel contact with liquid, other parts use SUS304 stainless steel
7. high quality PLC Touch screen platform Host frequency variable speed controlling, automatically show the current frequency
8. this machine has CE certificate in order to export Europe factory. also meet with GMP and CGMP standards
9. Supply English IQ,OQ,document and English manual user's
10.Supply FAT testing and SAT testing
11. suitable for e-liquid, e-juice, e-cigarette, E-liquids and oil difference liquid
E-liquid filling machine FAT testing working video as linkage: https://youtu.be/PF_8swVvD7Q
E-liquids/Eyedrop SAT testing working video for UK E-liquids factory as linkage :https://youtu.be/yqfhaqtj71o
working priciple:
Liquid oil /E-Cig/E-liquids/Eyedrop filling plugging and capping machine suitable 5-30ml round PET bottle or similar bottle, The machine is composed by a load turntable, by piston pump (Metering pump) ceramic piston pump(alternative peristaltic pump) according to difference liquid viscosity; capacity by fill nozzles, plug &cap sorter, Plug &cap placer, cap screw-on system, unload tray. The bottle loading/unloading is done manually, through loading turntableØ500mm and unloading tray, or directly from an production line. It is designed and made accordance to GMP regulation.
Bottle unscrambler or bottle in-feeding machine supply the empty bottles into the conveyor of filling machine, the conveyor conveying the bottles to filling position of the index wheel, when the in-feed eye sensor detect bottles, the filling lifting mechanism will go down, the filling nozzles insert into the bottles, the pump liquid feeding and filling process is controlled by volumetric pump, when finish filling, the filling lifting mechanism will come up, the wheel push the bottle to (the plugging position, the vacuum sucking head sucks the plug, the cam transports the vacuum sucking head to upper of the bottle (the clamping device clamp the bottle), then press the plug in to the bottle, then transporting the plugged bottle to) the cap placing position, the cap inserting mechanism will insert the cap on the bottle, then the wheel transports the cap inserted bottle to the capping position, the capping head screws the cap, then the wheel transports the capping bottle to the conveyor to the next procedure.
our machine detailed drawing (all parts name)
Filling sample:
Product Parameters

Kind of bottle	Round eyedrop bottle or similar
Bottle size	Min. Ø20mm Max. Ø30mm
Speed	80~100bpm on 10ml~5ml
Filling volume	5ml~30ml
Filling accuracy	±2%
Power	220V 50/60Hz 1.5kw
Compress air require	50~70L/min, 4~6bar
Machine size mm	Length 2500, width 1420, height 1500
Machine weight:	900kgs
