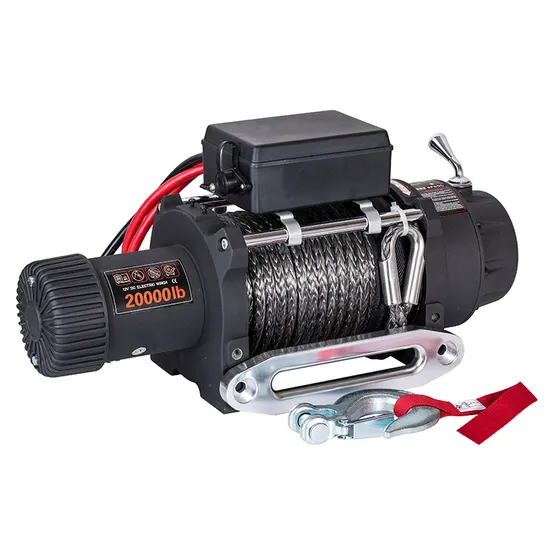

Heavy Duty 4X4 Winches 20000lb for Recovery with Synthetic Rope

Product Description

Heavy Duty 4x4 Winches 20000lb For Recovery With Synthetic Rope
SPECIFICATION
Line Pull: 9,071kgs/20,000lbs
Motor: Series Wound DC12V/7.8hp
Gear Train: 3-stage planetary
Gear Ratio: 364:1
Free-spooling Clutch: Rotating ring gear
Wire Rope Size: Φ12mm×28m
Drum Size: Φ3.5"×8.8"(Φ89mm×224mm)
LINE PULL

Layer of Wire Rope	Max Line Pull
1	20,000lbs/9,071kgs
2	17,000lbs/7,711kgs
3	16,100lbs/7,303kgs
4	15,230lbs/6,908kgs

LINE SPEED AND AMP DRAW (1st layer of rope on the drum)

Load	Line Speed	AMP Draw(12V)
No Load	25.7FPM/7.8MPM	142
8,000lbs/3,628kgs	16.4FPM/4.9MPM	285
10,000lbs/4,536kgs	10.5FPM/3.2MPM	330
15,000lbs/6,804kgs	7.5FPM/2.3MPM	395
17,000lbs/7,711kgs	5.6FPM/1.7MPM	410
20,000lbs/9,071kgs	3.0FPM/0.9MPM	430

DIMENSIONS: 608 x 190 x 252mm (23.9" x 7.5" x 9.9")
Mounting Bolt Pattern: 254mm x 114.3mm (10" x 4.5")
STANDARD ACCESSORIES
Wire Rope With Hook
4-Way Roller Fairlead
Control Unit
Controller
Wireless Remote
Mounting Hardware
Hand-saver Strap
PACKAGE
Winch Weight: 62kgs/136.4lbs
Gross Weight: 67kgs/147.4lbs
Box Dimension: 660×270×420 mm (26.0"×10.6"×16.5")
FAQ:
1.Company Positioning, Products Range & Market
We mainly focus on medium and high-end products.
Main products: Electric winches 2000lb to 20,000lb, suspension, bumpers, roof racks, snorkels, air lockers
Market: US, Europe, Russia, Australia, Southeast Asia and Latin America
2.MOQ
Sample order is accepted.
5pcs or sets for most other products.
3.Payment Terms
For bulk order, 30% deposit in advance. Balance shall be paid before shipment.
For sample order or small trial order, 100% in advance.
We accept payment by T/T, LC, Paypal, West Union, Credit Card, etc.
4.Delivery Time
3-5 days for sample order
7-25 days for bulk order
5.Warranty Clauses
For winches and 4x4 accessories, we provide 12-24 months warranty from the purchase date.
COMPANY INFO:
OUR MISSON:
Gear Up & Enjoy Extreme Off-roading
OUR VISION:
Becoming China's Top Winch Manufacturer and 4WD Solutions Provider
OUR VALUE:
Client's Satisfaction Comes First.
WE ARE DEDICATED TO WINCH MANUFACTURING AND 4WD SOLUTIONS
NINGBO CONQUEROR INDUSTRY CO.,LTD, designs and manufactures high quality electric winches and worm gear winches which are widely used in off-road vehicles, military applications, fire engines, industrial and commercial applications. Besides, we also supply reliable and durable 4x4 accessories like bull bars, rear bars, roof racks, roof tents, shock absorbers, air lockers, fender flares, snorkels, lift jacks, camp chair and other 4x4 accessories for off-road and outdoor.
We are an ISO certified organization and our products are certified with CE, RoHS. Now, our products have been exported to over 50 countries in the US, Europe, Russia, Asia, Australia, South America and Africa. Due to our good quality and competitive prices, we have gained high praise and good reputation from our clients.
Our company consists of a team of passionate people who have over 10 years' experience and profession in off-road industry. With concentration on products and good knowledge, we are always capable of providing the proper products to meet your requirement. Compared with other players, we are the most integrate supplier with profession, rich experiences, excellent communication skills and strong flexibility to shoot all problems. We sincerely hope we can help you if you need anything of 4x4 accessories.
Besides, we can provide OEM and ODM service to help you build your brand and expand your market. We always welcome new and existing clients to contact us or visit us for business cooperation.

---
