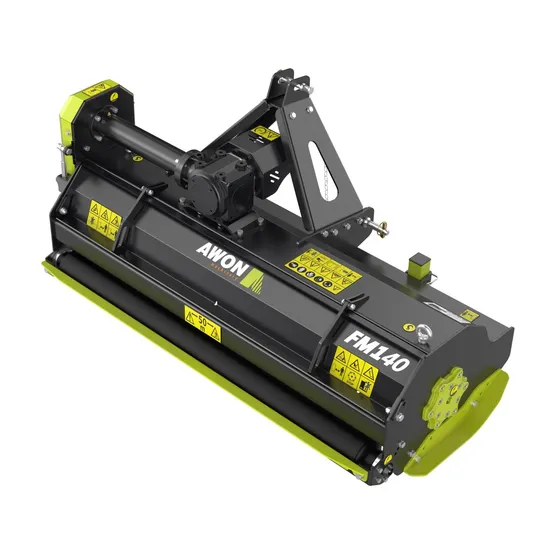

CE Approved Tractor Attached Flail Mower Mulcher

Product Description

Awon Standard Flail Mower FM series are rear mounted,PTO driven flail mowers for tractors. 14 models in total,working width varies from 1,000 to 3,000mm,power demand 25-120HP.FM series are designed for general maintenance of lawn,park,orchard,meadow and weed cut for undeveloped areas. The mowers cut the grass and spread it properly crumbled along the whole width of the cut surface.It enablesforming a natural swath and plant offcut mineralization.
Advantages * Mounting on 3-point hitch at the rear of the tractor linkage Cat.1,2
* Lightweight, compact design and at the same time high efficiency ensure economical use.
* Gearbox with a freewheel and input to 540 rpm for safety and easy use of the machine.
* The belt drive ensures quiet operation of the machine.
* The wide range of working widths allows the machine to be adapted to the working conditions and the type of terrain
* The body made of extremely durable and wear-resistant steel significantly extends the service life of the machine.
* Balanced weight and precise helical arrangement of flail knives provide effective operation in difficult conditions
* Easy, on-site, flail knife replacement
* Low noise operation
* Perfect ground following and even cutting height
* Metal plate guards at the front and at the back provide effective protection against stones
* Bearing protection and lubrication system
* PTO shaft as standard
* Housing can be hydraulic lifted to leave the shredded materials back to the field

Model	Dimension(mm)	Weight(Kg)	Cutting Width(mm)	PTO Input Speed	Number of blades	Tractor Power
FM100	1150*737*775	180	1000	540	14	25-40
FM120	1350*737*775	204	1200	540	18	25-40
FM140	1550*737*775	220	1400	540	20	30-50
FM160	1750*737*775	247	1600	540	24	30-50
FM165	1820*1020*820	395	1650	540	18	50-70
FM185	2020*1020*820	420	1850	540	22	50-70
FM205	2220*1020*820	435	2050	540	24	50-70
FM180	2000*1044*967	543	1800	540	16	70-100
FM200	2200*1044*967	575	2000	540	18	70-100
FM220	2400-1044*967	608	2200	540	20	70-100
FM240	2600*1044*967	640	2400	540	22	70-100
FM260	2850*1180*1040	853	2600	540	20	90-120
FM280	3050*1180*1040	898	2800	540	22	90-120
FM300	3250*1180*1040	1022	3000	540	24	90-120

AWON GROUP founded in 2006 which headquarter in the Netherlands is an integrated solution provider for modern Agricultural, Orchard and Gardening applications. With much effort of these years, AWON machinery gradually grows up to a pioneer in modern agriculture from designing to manufacturing a wide range of agricultural implements which used in commercial crops and field crops, including: Mower, mulcher, wood shredder, cotton baler, straw baler etc. With AWON GROUP's excellent design concepts and reliable product performance to help users improve operating efficiency, reduce usage costs, and increase profits, thereby protecting the ecological environment and achieving sustainable development of agriculture and nature.
The following are our patent certificates: Design Patent (mulcher), Utility Patent (branch mulcher, mulcher blades, pick-up branch mulcher and telescopic mower)
The following are our original hand-painted drawings, originality has always been our pursuit!

---
