20kw - 1200kw CUMMINS DIESEL GENERATOR / Power Generation

Product Description

Product Description

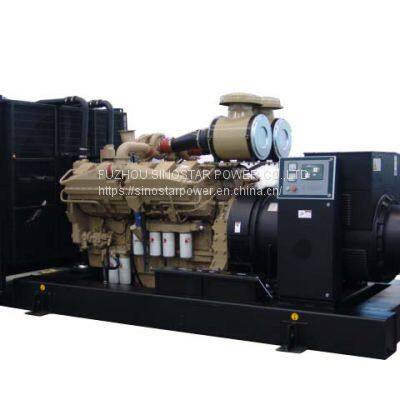

20kw - 1200kw CUMMINS DIESEL GENERATOR / Power Generation
Standard features:
-Power range: 20kw to 1200kw
-Output: 120V to 480V,50HZ or 60HZ,1500rpm or 1800rpm
-3phase or 1phase,4wire connection
-Single or three phase
-water cooled/air-cooled(below 200kw )
-Silent/weather proof/trailer type for optional
-Fuel tank for at least 8H running or sparate
-Two storage batteries
-24V charge alternator
-40 degree C Radiator(50 degree c for optional)
-Silencer,manual and tools
Engine:
-Engine: water-cooled diesel engines
-50HZ or 60HZ
-4,6,12 cylinders
-low fuel consumption
-Rated power factor:0.8(lagging)
-102/120,114/135,140/152,159/159mm bore/stroke
-standard starting method:24V electric starting
-cooling method: closed water-cooled
-lubricating methond:colsed lubricating
-stable governing rate=5%
-minimum oil consumptiong:=1.36g/kw.h
-minimum fuel consumption:=205g/kw.h
Alternator:
-Alternator:Stamford/Leroy sommer/Marathon/STF series brushless alternator
-CLASS H insulation
-IP21/23 protection
-self-regulator by AVR
-50hz /1500rpm or 60hz/1800rpm
-110-480V,3 phase,4wire,pf.0.8
-electric system:24V/12V
-wave distort:less then 10%
Soundproof/Silent box:
-Excellent ventilation
-Fuel tank mounted on baseframe for 8 Hours working
-Highly Corrosion Resistant construction
-Excellent Access for Maintenance
-Security and Safety
-1m<80DBA / 7m<70DBA
Control panel:
-Automatic control panel(AMF),LED display.
-All protection systems
-Emergency stop
-Automatic transfer switch
-DSE/COMAP/SMARTGEN/HARSON series AMF controller
Optional:
- Trailer type
- Soundproof / water proof
- ATS(automatic transfer switch)
- water Heater
- Parallel system
- Remote system
Technical specifications:

Model	Output				Engine model	Alternator
	STANDBY		PRIME(RATED)
	kVA	kW	kVA	kW		Lery somer
SP-C20	28	22	25	20	4B3.9-G2	LSA42.2M7
SP-C33	41	33	38	30	4BT3.9-G2	LSA43.2S15
SP-C45	50	40	45	36	4BTA3.9G2	LSA 43.2 S25
SP-C55	62	50	56	45	6BT5.9G2	LSA 43.2 M45
SP-C82	100	80	90	72	6BT5.9G1	LSA 44.2 VS3
SP-C88	110	88	100	80	6BT5.9G2	LSA 44.2 VS45
SP-C100	138	110	125	100	6BTA5.9G2	LSA 44.2 S7
SP-C120	150	120	138	110	6BTAA5.9G2	LSA 44.2 S75
SP-C132	165	132	150	120	6CTA8.3G1	LSA 44.2 M95
SP-C150	198	158	188	150	6CTA8.3G2	LSA 46.2 M3
SP-C176	220	176	200	160	6CTAA8.3G2	LSA 46.2 M5
SP-C220	275	220	250	200	6LTAA8.9-G2	LSA46.2L6
SP-C250	312.5	250	275	220	NTA855-G1A	LSA46.2L9
SP-C275	350	280	312.5	250	NTA855-G2	LSA46.2VL12
SP-C300	385	308	350	280	NTA855-G2A	LSA47.2VS2
SP-C360	420	336	375	300	KTA19-G2	LSA47.2VS2
SP-C400	500	400	450	360	KTA19-G3	LSA47.2S5
SP-C450	550	440	500	400	KTA19-G4	LSA47.2M7
SP-C600	600	480	550	440	KTAA19-G5	LSA47.2M8
SP-C550	687.5	550	625	500	KTAA19-G6A	LSA47.2L9
SP-C660	825	660	750	600	KTA38-G2	LSA49.1M6
SP-C720	900	720	800	640	KTA38-G2A	LSA49.1M75
SP-C800	1000	800	900	720	KTA38-G2A	LSA49.1L10
SP-C1000	1100	880	1000	800	KTA38-G5	LSG55
SP-C1400	1550	1240	1400	1120	KTA50-G8	LSA 50.2 L7
SP-C1500	1675	1340	1500	1200	KTA50-GS8	LSA 50.2 L8

Sale promise:
SINOSTAR Power provides a full line of brand new and high quality products. Each and every unit is strictly Factory tested.
Warranty is according to our standard conditions:
a, 15 months, counted on the day SINOSTAR sold to the first buyer;
b, One year after installation;
c, 1000 running hours (accumulated); subject to the earlier one.
Service and parts are available from SINOSTAR Power or distributors in your location.

---
