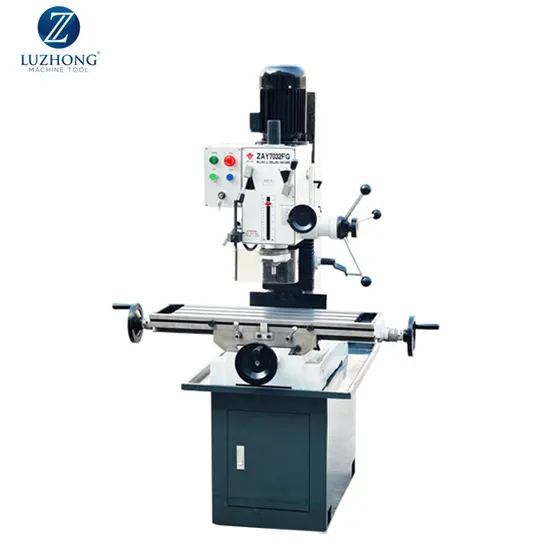

The Most Popular Low Cost ZAY7032FG Milling And Drilling Machine

US$1,550.00
1-4 set
US$1,500.00
5+ set

Basic Info.

Model NO.
ZAY7032FG
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max.drilling dia.
32mm
Max.face milling capacity
63mm
Max.end milling capacity
20mm
Distance betweeen spindle nose and table
450mm
Distance from spindle axis to column sur
260mm
Spindle travel
130mm
Spindle taper
M.T.3 or R8
Spindle speed steps
6
Spindle speed
50Hz 80-1250 60Hz 95-1500 rpm
Swivel angle of headstock(horizontal)
+-90
Table size
800*240mm
Table travel
500*175mm
Main motor power
0.75kw
Transport Package
Plywood Case
Specification
77*88*186
Trademark
LUZHONG MACHINE TOOL
Origin
China
HS Code
8459590000
Production Capacity
7000 Pieces/Year

Packaging & Delivery

Package Size
77.00cm * 88.00cm * 186.00cm
Package Gross Weight
370.000kg

Product Description

Bench Vertical Metal ZAY7025FG/ZAY7032FG/ZAY7040FG/ZAY7045FG Drilling and Milling Mahine
Product Description
The main performance characteristics:
Gear-driven type and square column
Milling, drilling, tapping, boring and reaming
Head swivels 90 verticaly
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Product Parameters
Product main technical Specifications:
ITEM ZAY7025FG ZAY7032FG ZAY7040FG ZAY7045FG
Max drilling capacity 25mm 32mm 40mm 45mm
Max face milling capacity 63mm 63mm 80mm 80mm
Ma.End milling capacity 20mm 20mm 32mm 32mm
Max.distance from spindle nose to table 445mm 450mm 450mm 450mm
Min.distance from spindle axis to column 203mm 260mm 260mm 260mm
Spindle travel 85mm 130mm 130mm 130mm
Spindle taper M.T.3 or R8 M.T.3 or R8 M.T.4 or R8 M.T.4 or R8
Step of spindle speed 6 6 6 6
Range of spindle speed 50Hz 95-1420 r.p.m 80-1250 r.p.m 80-1250 r.p.m 80-1250 r.p.m
60Hz 115-1700 r.p.m 95-1500 r.p.m 95-1500 r.p.m 95-1500 r.p.m
Swivel angle of headstock(perpendicularly) 90° 90° 90° 90°
Table size 520×160mm 800×240mm 800×240mm 800×240mm
Forward and backward travel of table 140mm 175mm 175mm 175mm
Left and right travel of table 290mm 500mm 500mm 500mm
Motor Power 0.37KW 0.75KW(1HP) 1.1KW(1.5HP) 1.5KW(2HP)
Net weight/gross weight 180kg/240kg 320kg/370kg 323kg/373kg 325kg/375kg
Packing size 680×750×1000mm 770×880×1160mm 770×880×1160mm 770×880×1160m

Detailed Photos
