Product Details
Product Description
Product Description

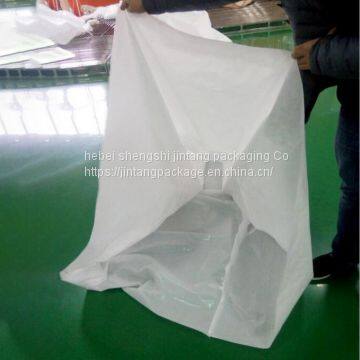

Our big bags are made by FDA and RoHS approved virgin PP material, in circular woven structure, tubular or U-Panel or 4 panel type, accept customized specification and printing design, widely used for packing and transporting agriculture, industry, construction material and mineral.
1.U panel big bag Brief introduction:
(1)Open top and Flat bottom
(2)filling spout and flat bottom
(3)Other types of u panel bulk bag:
like:duffle top and flat bottom/open top and discharge sopout/duffle top and discharge spout/filling spout and discharge spout.
(4) two most common bulk bag designs are:
1>U-panel fibc bag body with four side-corner loops
2>Tubular body with four cross-corner loops
U type circular type
(5) U-panel container bag apply for:
Chemical
Mining: coal, mineral
Building Materials: cement, sand, stone, wood, etc..
livestock breeding: feed
Agriculture: fertilizer, seeds
Foodstuff: rice, corn, wheat, flour, sugar, salt, etc..
Hazardous Wastes
2. U panel big bag Specification:
Specification
|
Name
| u-type FIBC / Ton bag / big bag / jumbo bag / bulk bag / contain bag / super sacks
|
Raw Material
| Virgin PP woven fabric
|
Bag Size
| 100x100x100cm, or as per your request
|
Bag Color
| white, or as per your request
|
Pringting
| Up to 3 colors per side
|
body
| PP 150-230gsm, on your option
|
spout
| PP 85gsm, or as per your request
|
Lifting belt
| PP 2700D, or as per your request
|
Liner
| 70 micron PE bag, or as per your request
|
Top
| Full open / filling spout / duffle / flap
|
Bottom
| Flat / discharge spout
|
loop
| cross corner loop / side-seam / fully loop/ loop in loop
|
Special handling
| Anti-UV coated, custom logo printing, etc...
|
SWL
| 500-3000 kg
|
Packing
| Bale, pallet or customized
|
Min Order Qty
| 2000 pcs
|
FCL Loading
| 19MT per 1*40HQ
|
Delivery Time
| 20-30 days after the deposit for normal
|
Payment Term
| T/T or L/C
|
Special Request
| As per the customer`s request
|
3.Our U-type FIBC bag features:
(1).safety - Big Bag have a 6 to 1 lifting safety factor, because of tubular design the risk of side seam failure has been reduced.
(2). Cleaner environment - Fill and discharge spouts control dust during filling and emptying, also reducing the risk of fire and providing a cleaner and healthier work place.
(3). Less risk of damage - An inserted polyethylene liner and/or lamination makes the Big Bag moisture resistant as well as stronger than other flexible containers.
(4). Lower costs – Rapid filling and less shipping damage with these containers reduce operating costs, and a collapsed bag stores in only 5% of its filled volume.
(5). Enhanced appearance – White (FDA Approved), clean Big Bag containers with high quality printing of your name or logo create a positive presentation.
4. U jumbo bag different advantages for customer to choose :
Sizes & designs can be tailored to individual needs.
Fabric can be coated, uncoated, and colored.
Siftproof for dust prevention or leakage.
UV-treatment available (sustain up to 2,500 hours of sunlight).
Various lifting options, filling options, and discharging options.
UN certification for packaging PG I, II & III dangerous goods.
Food-grade liners available for food packaging.
Safety factors 5:1 (for single-trip use), 6:1 (UN-approved), and 8:1 (for multi-trip uses).
All bags have a document pouch and handling label.
5.Except U type jumbo bag,we also produce
1)Circular type jumbo
2)baffle jumbo
3)Sling bags
So if any item you are interest,please contact me freely,i will give you
our best price.
Packaging & Shipping
our U jumbo big bag package is :50-100 pcs per bale /20GP - 8.5 MT /40GP - 15 MT /40HQ - 19 MT,or as customers requirement.
Mainly Products:
l All kinds of traditional PP woven sack/bag from 5kg - 100kg loading weight for rice, cereal, fertilizer, animal feed, grains, agriculture food, etc.
offset printing bag, flexible printing bag, gravure printing bag, OPP laminated bag, inner PE liner PP woven bags, and other special customized bags .
l AD*star cement valve bag with or without inner paper 25kg-70kg , any color , any size
four sets Austria starlinger production lines, about 800 000 000 pcs annual production quantity.
l FIBC bag , jumbo bag , big bag , bulk bag
past SGS testing, have UN products production right
l Tubular/flat PP woven fabric rollers
If you have any need of these PP woven packages , welcome To contact me any time via the following ways :
>>
