Universal Oil Industry Pipe Threading Lathe Machine Thread Lathe Machine Q1330

Product Description

Product Description
This series of pipe thread lathes are mainly used to process internal and external threads of pipes. They can also be used as ordinary lathes. They can process the outer circle, inner hole and end face of shafts, pipes and disc parts. This machine is widely used in the petroleum industry and can process and repair drill pipes, joints, casings and other parts. It is also used for thread processing of various pipelines, drill pipes, etc. in coal, chemical, water conservancy, geological exploration and other industries.
√ Big spindle bore and double chuck allows clamp and process big diameter pipes;√ Integral machine bed adopts high stength iron to realize high rigidity and precision;√ Ultrasonic frequenched guide-ways are enough for wear-resistance;√ Equipped with taper guide bar device to process taper threads.
Double Chuck The impressive big spindle bore and double chuck design empower it to securely clamp and expertly process large-diameter pipes.
Quenched Guide The ultrasonic frequency quenched guide-ways offer exceptional hardness, ensuring superior wear-resistance and long-lasting durability.
Quenched Guide The ultrasonic frequency quenched guide-ways offer exceptional hardness, ensuring superior wear-resistance and long-lasting durability.

Tailstock Comes standard with a manual tailstock, and offers optional hydraulic or pneumatic tailstock, tailored for your operational needs.

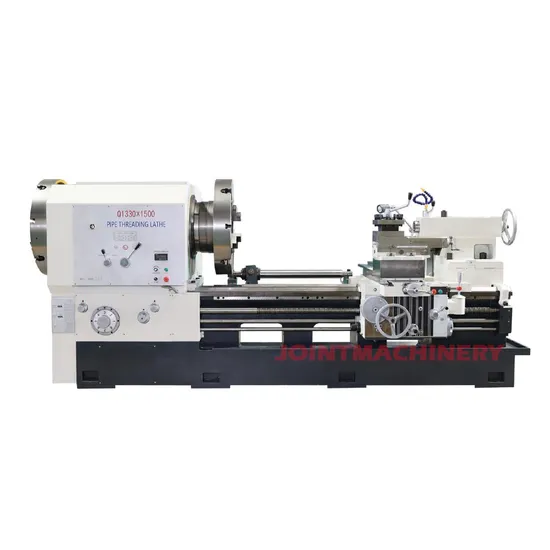

Universal Oil Industry Pipe Threading Lathe Machine

Item		Unit	Q1330
Max diameter swing over bed		mm	800
Max diameter swing over cross slide		mm	480
Max length of workpiece		mm	1500
Width of bed		mm	600/550
Spindle bore		mm	305
Power of spindle motor		kw	15
Spindle speed		r/min	VF2 Steps 20-300
Z axis feed grade/range		mm/r	32/0.095-14
X axis feed grade/range		mm/r	32/0.095-14
Carriage rapid traverse speed		mm/min	3740
Cross slide rapid traverse speed		mm/min	1870
Metric thread grade/range		mm	22/1-15
Inch thread grade/range		T.P.I	26/14-1
Module thread grade/range		mm	-
DP thread grade/range		D.P.	-
Traverse of cross slide		mm	420
Max traverse of turret		mm	200
Tailstock quill travel		mm	250
Tailstock quill diameter/taper		mm	middleΦ100/MT6#
Chuck			Φ630 4-jaw manual chuck
Dimension		mm	3750*1700*1600
Net weight		T	7.0

Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

Q1: Are you trading company or manufacturer?A1: We are factory.Q2: What is your terms of payments?A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.Q4: What is the package? Is it suitable for shipment?A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.Q5: How long is the warranty for machines?A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.

---
