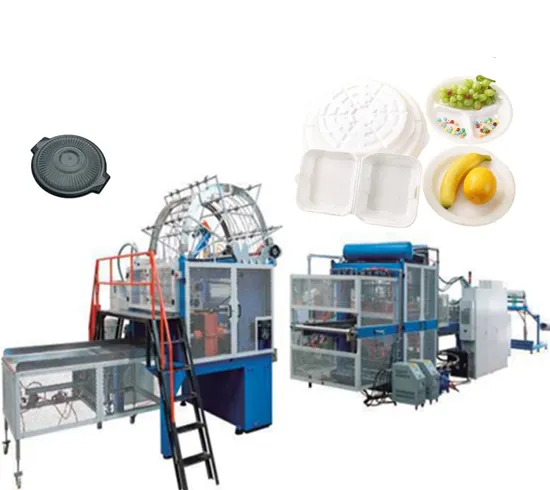

Full Automatic PS Foam Thermoforming Machine

Product Description

Plastic Thermoforming Machine to make lunch box

I. Machine Features

This plastic machienry , as the 20-year fruit of the researchers in Hangzhou Holin Plastic Machinery Co., Ltd., has the following features:
1. High speed: the molding speed is up to 30 molds/min, and the blanking speed, 120 molds/min;
2. Large molding area: with the technical support of Holin Plastic Machinery Co., Ltd., this machine set is suitable for high-speed molding and blanking of wide sheets in the width of 44 inch, 48 inch, 52 inch, 54 inch, and 60 inch.
3. Low power consumption: the advanced patent technology makes this machine unit consume half of the power of other machines.
4. Good products: the large mould clamping force makes it apply air pressure (positive pressure), compression or comprehensive molding;
5. Labor saving: the high automation saves labors; the whole production line only needs one worker (except packing workers);
6. This machine unit can storage various production data; after mould changing, all the production data will be adjusted and production can be started as long as the mould number is input;
7. This machine unit can realize remote fault diagnosis.
II.Technical Parameters

Station one: Thermoforming machine part
Model/Parameters	Unit	HLRCH-760/1010	HLRCH-1060/1300	HLRCH-1100/1300	HLRCH-1300/1300	HLRCH-1300/1420
Max. forming area	mm2	762x 1016	1065X1295	1120X1295	1270X1295	1270X1420
Max.forming depth	mm	127	127	127	127	127
Mold clamp force	t	40	60	60	60	60
Max. forming speed	s/mold	1.8	2	2	2	2
Oven length	mm	3000	5300	5300	5300	5600
Total power	kw	110	315	330	365	400
weight	t	7	10	11	14	16
Install(LxWxH)	m	10x2x2.5	14x2.2x2.5	14x2.2x2.5	14x2.35x2.5	15x2.35x2.5

Station two: In line cutting machine part
Model/Parameters	Unit	HLZCZ-760	HLZCZ-1060	HLZCZ-1100	HLZCZ-1300
Max. cutting area	mm2	762x400	1065X400	1120X400	1270X500
Max.cutting depth	mm	150	150	150	150
Max. cutting force	t	20	35	35	35
Max. cutting speed	cycle/min	160	160	160	160
Total power	mm	3000	5300	5300	5300
Total power	kw	15	22	22	25
weight	t	6	8	8	9
Install(LxWxH)	m	5x3.7x3.5	5x4x3.5	5x4.5x3.5	5x4.5x3.5

Note:
1.We can customize machines upon request.
2.Technique parameters and requirements are subject to contract.
III.After Sales Service
1.We can install and commision machines in customers' factory.
2.Warranty: 1 year.
3.Provide long term technique support.
4.Provide lifetime maintenance.
IV.Photos

---
