Product Details
Product Description
Product Description

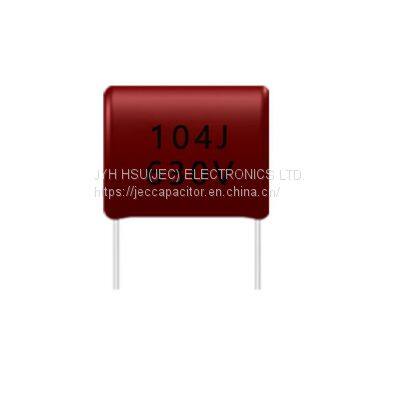

CL21X 104J 630V film capacitor for sale mini metallized polyester film capacitor film capacitor manufacturers
Product features:
1. Metallized polyester film, non-inductive structure, good self-healing.
2. Flame retardant epoxy resin coated, safe and look good.
Electrical characteristics:
Technical requirements reference Standard
| GB/T 7332 (IEC 60384-2)
|
Climatic Category
| 55/105/21
|
Operating Temperature
| -55℃~105℃（+85℃~+105℃：decreasing factor1.25% per℃ for UR）
|
Rated Voltage
| 63V,100V,250V
|
Capacitance Range
| 0.001μF~1μF
|
Capacitance Tolerance
| ±5%(J) 、±10%(K)
|
Withstand Voltage
| 1.5UR , 5sec
|
Insulation Resistance(IR)
| Cn≤0.33μF,IR≥15000MΩ ;Cn>0.33μF,RCn≥5000s at 100V,20℃,1min
|
Dissipation Factor (tgδ)
| 1% Max , at 1KHz and 20℃
|
Jec Metallized Film Capacitor Application Area :
1. Suitable for bypass, DC blocking, coupling, decoupling, filtering, low pulse and other circuits.
2. Suitable for DC filtering of switching power supply, electronic ballast and frequency converter intermediate circuit.
Matters Needing Attention:
1. Do not store the capacitor in corrosive gas, especially in the presence of chlorine, sulfur, acid, alkali, salt, moisture, etc.
2. The storage temperature and the relative humidity should not be too low or too high.
JYH HSU(JEC) ELECTRONICS LTD. is Provide Resistors For Sale and Varistor 05d561k Manufacturer and Film Capacitor For Sale, If You Need, Welcome To Contact Us To Know More.
