Guideway type bow hydraulic press

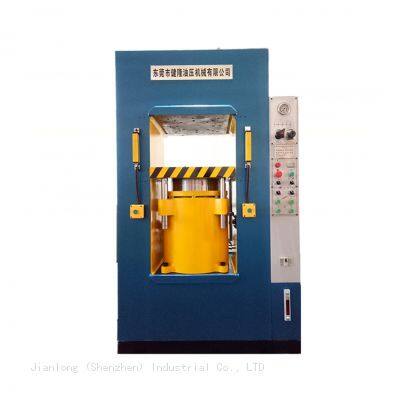

300 tons frame type hydraulic press product introduction
I. Product overview
300 tons frame hydraulic press is a high-performance hydraulic forming equipment, using a strong frame structure to ensure high precision and high stability, suitable for metal sheet stamping, stretching, bending, flanging and non-metallic materials molding. The equipment is widely used in automobile manufacturing, aerospace, home appliance manufacturing, powder metallurgy, composite material molding and other industries.
Two, the main technical parameters
Nominal pressure: 300 tons
Table size: customized
Maximum opening height: 800~1200mm (customizable)
Slider stroke: 400~800mm
Hydraulic system pressure: ≤ 25 MPa
Working speed:
Fast downlink: 100 ~ 250 mm/s
Pressing speed: 5 ~ 50 mm/s
Return speed: 100 ~ 200 mm/s
Motor power: 22~37kW (according to demand)
Third, product characteristics
High rigidity structure: The use of high-quality steel plate welding, annealing treatment, to ensure long-term operation without deformation, improve the ability to resist biased load.
Efficient hydraulic system: imported hydraulic components, stable pressure, smooth operation, fast response speed.
Intelligent electronic control system: equipped with PLC+ touch screen control, can set a variety of working modes, to achieve high-precision automatic operation.
Safety protection: equipped with grating safety protection, emergency stop button, overload protection, etc., to ensure safe operation.
Energy saving and environmental protection: Optional servo hydraulic system, reduce energy consumption, improve production efficiency, reduce noise.
4. Scope of application
Sheet metal stamping, drawing, bending, flanging and other processes
Powder metallurgy molding
Composite pressing (SMC/BMC, carbon fiber, etc.)
Molding of rubber and plastic products
5. Product advantages
High precision, strong stability, suitable for mass production
Modular design, support for personalized customization
Low energy consumption, low noise, environmental protection and energy saving
Multiple security protection, operation more assured
With its excellent performance, the 300-ton frame hydraulic press is widely used in various manufacturing industries, and is an efficient, accurate and reliable ideal hydraulic forming equipment. Welcome to consult customized solutions for more details.
>>
