Customized 5.5 Inch Poe Android Touch Screen Wall Mounted Tablet PC

Product Description

Product OverviewNewly Developped 5.5 inch Wall Mounted POE Android Touch Screen Tablet PC, Featured with RJ45 (POE) RJ12 (RS485) USB Type-C Ports
Key Features-Support Three Charging Methods:* 5V USB Type-C + support OTG data transfer* 48V RJ45 (POE) + ethernet connection* 12V RJ12+ RS485 communications -Wall Mounted Solution: recessed outlet box-Sensor: 450mm proximity distance, when user come closer , the screen will be on automatically-Microphone: good frequency response and high sensitivity with echo cancellation for IP call -Case: aluminum alloy molded injection molding, shot blasting, fireproof plastic case with metal middle frame, water repellency design -Low Current Consumption & Good Heat Dissipation Solution: operate and charge for a long time (24hr/365 days) without regular reset-The Back Light Dimming Level: can be adjusted by app from completely dark to full brightness-App will automatically be launched after power up

ProcessorMTK8768, octa coreCortex-A53 x2.0GHz,12nm	Operating SystemAndroid 14Support software debugging	DisplayScreen: 5.5 inch TFT LCD IPSResolution: 1080*1920 FHD
Memory4GB LPDDR4+64GB eMMC	SpeakerBox speakers 8Ω/1.0W*1	WirelessIEEE 802.11ac/a/b/g/n 2.4GHz&5GHzBluetooth 5.0NFC Optional
Power SupplyNo BatteryType-C (5V2A)POE (12.5W 48~53V)RJ12(12~24V 1.5A)	I/O PortsRJ45 (POE)RJ12 (RS485)USB (Type-C)Button (power,vol-)	Mechanical143.66 x 80.66 x 9.95mmMetal housingWall mounted supported

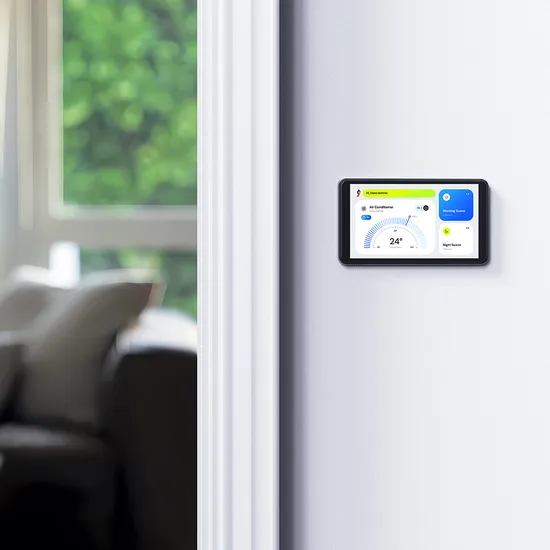

Smart Room Control Terminal Device Let enhance your smart room control systems with a customized wall mounted touch screen tablet android featured with RJ45 (POE), RJ12 (RS485), USB (Type-C) ports. We provide high-performance hardware, enabling customers to independently develop and integrate software that meets their specific business needs

Support OEM & ODM ServicesFrom a product concept, industrila design solution, mechanical design solution to the finished product production.

ToolingID Design; MD Design HardwarePCBA Schematic DesignPCB LayoutPCBA DebuggingProofing and Debugging of Peripheral components SoftwareDrivers DebuggingCustomizationDebug Pre-installed applications AccessoriesSmart CoverDocking Charging StationCharging Bracket/DockMagnetic Back ClipWall MountStylus PenAnd more...

Product Parameters

Specification
Chipset & Platform
CPU	MTK8768,8 core,Cortex-A53,2.0GHz,12nm
GPU	IMG GE8320
NPU	/
RAM	4GB LPDDR4
ROM	64GB eMMC
OS	Android 14
Display
Screen	5.5 inch TFT LCD IPS
Resolution	1080*1920 FHD
Brightness	400cd/m2
Contrast Ratio	1000:1
View Angle	80
Touch Panel	Capacitive 5 point multi-touch screen,G+FF full lamination
Wireless
WiFi	IEEE 802.11ac/a/b/g/n 2.4GHz&5GHz
Bluetooth	Bluetooth 5.0
NFC	Optional
Camera & Speaker & Mic
Speaker	Box speakers 8Ω/1.0W*1
Mic	Built-in*1
I/O ports
USB	1*USB-C(data&OTG),5V 2A
RS485	1*RJ12,12~24V 1.5A
RJ45	1*100M,PoE(12.5W)
Buttons	power,vol-
Power supply
Battery	/
TYPE-C	5V2A
POE	12.5W 48~53V
RJ12	12~24V 1.5A
Functions
Accelerometer(G-sensor)	Optional
Gyroscope	Optional
Light sensor	Optional
Proximity sensor	Optional
Mechanical
Dimensions	143.66 x 80.66 x 9.95mm
Weight	TBD
Mount	Wall mount supported
Housing materials	Metal
Environment
Operationg temperature	-10 to 60
Storage temperature	-20 to 70
Accessories
In the Box	Manual,warranty card
Certifications
Optional	CE,FCC,RoHS,KC...

Packaging & Shipping
Our Services
OEM Services:a. Print Logo on Back Case(Plastic/Metal), Touch Panel(with MOQ 3000PCS) and Accessories(Giftbox/User manual/ Warranty card/Charger/Leather case) etcb. Support free Artworks customizationc. Support free Software customization(Including Startscreen/Wallpaper/System information/Pre-insall Apps etc)ODM Services: We offer ODM solutions for certain customers who have specific needs which can't be satisfied by existing devices in the market. we can provide :a. ID/MD/PCB/Accessories/Package designb. Software customization/debugging/provide SDK or source codeAnd Now our ODM services has covered more than 10 different application fields, such as :a. Smart home IOT projects, with zigbee, z-wave, lorawan, MQTT, HTTP, POE, wall mount...etc functionb. Smart Kitchen Appliance, such as coffee maker, toaster, tea milk vending machinec. Smart healthcare products for hospitals & patients & seniorsd. OBD & Navigation & car hearest display Device for Vehiclee. Smart Payment Terminal Devicef. Education projects*Smart gym solution After-sale Service:a. 1year warranty for all products(Exclude accessories), any terminals with quality issue(Exclude human factors) can get repaired or replacement from us.b. If clients handle the service locally, we will provide recommendations for clients to purchase some Spare parts(PCBA/LCD/Touch panel/Battery etc)c. For the product assembling and repairing, we will provide video. If necessary, we will send technical staff to traind. Technical assistance for whole life
Company Profile
Pretech International Co., Limited, founded in 2010, specializes in Android and Linux-based smart display solutions for control consoles. We offer fully customized solutions ranging from 3 inches to 100 inches, as well as off-the-shelf options, focusing on technical development, balancing quality and cost, and providing excellent sales service. Our smart panels feature a variety of functions such as 5G, LTE, Wi-Fi, POE, RS485, KNX, Bluetooth, Zigbee, ZWave, Thread, Matter, NFC, 1D TOF, 3D TOF, IR, RF, AI acceleration etc... providing excellent HMI(human-machine interface) experience. These features are tailored for various industries, such as: Home Automation; Intercom and Security System; In-vehicle Infotainment; Smart Sport; Healthcare; Home Appliances; Advertising Kiosk; Payment Systems; Education, and more...Our professional R&D, sales, and service teams have extensive experience, successfully delivering numerous large ODM and OEM custom projects. We focus on hardware and OS development, also including integrated MDM and OTA applications, ensuring high quality and cost-efficiency while providing exceptional service.
Customer Feedbacks
FAQ
Q1: Can you support to design the tablet pc/ smartphone /laptop outlook?A1:Yes, we can custom ID and MD design with your reference and using scenario description.Q2: Do you support the product software(SW) development?A2: Normally we do system and driver level development, Application-level development will be done by Client or 3rd partysoftware(SW) developer assigned by clients.Q3: Which OS can you support development?A3:Yes, we can support tablet PC & smartphone custom OS based on Android OS ,Windows OS ,Linux OS, Ubuntu OS.Q4: Can you support to remove the battery from tablet PC?A4:Yes, sure, we can support tablet PC or smartphone removed battery, removed the camera, shipment without the device case, as well as we can support add the POE,USB Type C, DC IN, HDMI interface on the smart device. Q5: Can you support SDK service?A5: Yes, we can support SDK (software kit development) service for customers. Q6: Do you have any experience with educational projects?A6: Yes,we have rich experience with quite a lot educational cases.a. 7inch wifi version PND for European big map dealer. b. Windows 10.1inch OBD without battery/back cover for American 4s auto repair shopc. 8inch T618 4g octa core tablet with high temperature compatible battery for Australia map dealer.d. 10.1inch android headrest entertainment tablet pc with explosion-proof touch screen for uber. etc.countless cases
Q7: Can you support customization of accessories for smart devices?A7:Yes, we can support custom smart cover, docking charging station, charging dock, magnetic back clip, wall mount, stylus pen for smart device.Q8: Can you provide prototype samples?A8: Yes, in principle we can provide prototype samples before bulk order. For this we will need detailed requirements and then be able to come back to you with the best proposed solution asap.Q9: What's the normal ODM product development time?A9: Normally, it takes 3-5 months, but it can vary depending on the complexity of the project. Please contact us and provide detailed requirements and we will propose the best solution to you asap.Q10: How is the ODM device development cost calculated?A10: Development charge is in 2 parts: a. Tooling design;b. PCBA development and hardware tuning. Cost also depends on the specific project. Please contact us and provide detailed requirements and we will propose the most cost effective solution to you asap.Q11: Can we sign NDA?A11: Yes, we can sign NDA.Q12 How to deal with the intellectual property?A12: It's joint development between clients and Pretech. The ownership of the intellectual property depends on the agreement between clients and Pretech.Q13: What's your after-sales service for ODM smart device ? Can you support two year's or more warranty?A13: Normally, we provide a 1-year warranty as standard. However, we can support a 2-year warranty or more, if the customer enquires. Please contact us and provide detailed requirements and we will propose the most suitable solution to you asap.

---
