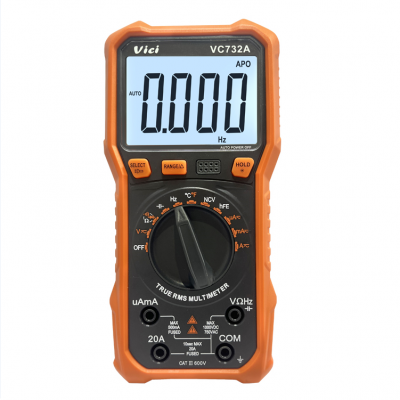

Vicimeter VC732A Auto Range 2000 Digits Multimeter
Features:
u New type holster, streamlined design, comfortable handle;
u Large LCD display makes reading clear;
u Strong antimagnetic and anti-interferential performance;
u Full function protection;
u Auto power off when there is no measurement in 15 minutes;
u Unit symbol display, easy to read; Lighting function, backlight display.
u True RMS, Non-contact voltage detect (NCV), relative value measurement, frequency/duty cycle and data hold function;
Technical Data
Basic function
| Range
| Basic Accuracy
|
DCV
| 200mV/ 2V/ 20V/ 200V/ 1000V
| ± (0.5%+5)
|
ACV
| 2V/ 20V/ 200V/ 750V
| ± (0.8%+10)
|
DCA
| 200uA/ 2000uA/ 20mA/ 200mA/ 2A/ 20A
| ± (1.0%+5)
|
ACA
| 200uA/ 2000uA/ 20mA/ 200mA/ 2A/ 20A
| ± (1.5%+10)
|
Resistance
| 200Ω/ 2kΩ/ 20kΩ/ 200kΩ/ 2MΩ/ 20MΩ
| ± (0.8%+2)
|
Capacitance
| 20nF/ 200nF/ 2uF/ 20uF/ 200uF/2000uF
| ± (2.5%+5)
|
Frequency
| 10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz
| ± (0.5%+4)
|
Temperature
| -40℃～1000℃/-40℉～1832℉
| ± (1.0%+5)
|
Special function
| VC732A
|
Max. display
| 1999
|
True RMS
| √
|
NCV
| √
|
Data hold
| √
|
Function protection
| √
|
Torch function
| √
|
Backlight display
| √
|
Duty cycle
| 1%~99%
|
Triode (hFE) test
| √
|
Diode test
| √
|
Continuity alarm
| Less than 50Ω, it displays “OL” if over 610Ω
|
Low battery indicator
| Approx. less than 2.4 V
|
Auto power off
| About 15 minutes
|
Input impedance
| 10MΩ
|
Sampling rate
| 3 times/s
|
AC frequency response
| 40Hz-1kHz
|
Operation method
| Manual or Auto range
|
LCD size
| 65x43.5mm
|
Battery
| 3V (2*AAA battery)
|
Power consumption
| Quiescent current about 2mA
|
General Info:
Meter color
| Orange + Grey
|
Meter weight
| 306g (including battery)
|
Meter size
| 190×92×50mm
|
Standard accessory
| Test leads, battery, manual, TP01 temperature probe
|
Standard packing
| 30pcs
|
G.W. per carton
| 15kg
|
Carton size
| 43.5*29.5*42.5cm
|
>>
