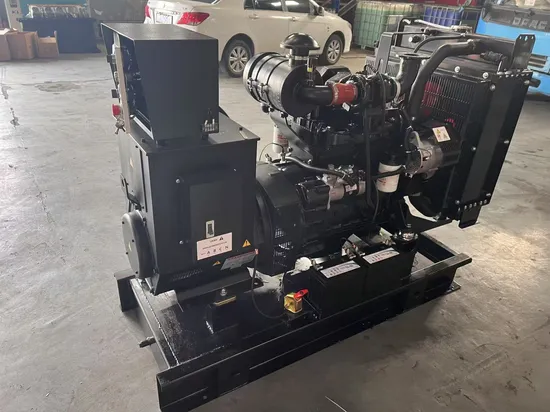

40kw 50kVA Silent Type 50Hz 60Hz C Ummins 4BTA3.9-G2 Engine Diesel Generator Set

Product Description

Product Description Open type /Silent / Soundproof type / Trailer type/ Container type diesel generator set
1. Our cooperate engine brand -Powered by C ummins,P erkins,V OLVO,M TU,M itsubishi,D eutz,D oosan,F P T,Weichai,Xichai,SDEC,Yuchai .2. Our cooperate alternator brand -Stam-ford,Leroy-Somer,Mara-thon,east power,meccalte,Engga,Evotec,LD,Kangfu.3. Our cooperate Controller brand -DSE,ComAp,Smartgen,east power,Deif.
4. Equipped with 50°C Copper or aluminum Water-cooled radiator, Make the engine can run for a long time.4. Multiple control systems for choosing,Manual Control system,Automatic start type control system,ATS system, remote control system, parallel control system.5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.8. Generator equipped with over 8 hours fuel tank with fuel indicator.9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.
Product Parameters

GENERATOR SET TECHNICAL PARAMETER						ENGINETECHNICAL PARAMETER
Genset Model	Prime Power (KW/KVA)	Standby Power (KW/KVA)	Speed Control model	Dimension L*W*H(mm)	Weight (kg)	Engine Model	Engine Power (KW)	Cylinders* Bore*Stroke (mm*mm)	Fuel Consumption Rate(g/kw.h)	Displacement (L)
DD-C16GF	16/20	18/22.5	M	1580*630*1080	580	4B3.9-G11	20/22KW	4*102*120	≤245	3.9
DD-C20GF	20/25	22/31.25	M	1600*630*1080	600	4B3.9-G1	24/27KW	4*102*120	≤245	3.9
DD-C20GF	20/25	22/31.25	E	1600*630*1080	600	4B3.9-G2	24/27KW	4*102*120	≤229	3.9
DD-C24GF	24/30	27/33.75	E	1600*630*1080	620	4B3.9-G12	27/30KW	4*102*120	≤227	3.9
DD-C30GF	30/37.5	33/41.25	M	1650*730*1100	650	4BT3.9-G1	36/40KW	4*102*120	≤229	3.9
DD-C30GF	30/37.5	33/41.25	E	1650*730*1100	650	4BT3.9-G2	36/40KW	4*102*120	≤214	3.9
DD-C40GF	40/50	44/55	E	1700*730*1100	680	4BTA3.9-G2	50/55KW	4*102*120	≤213	3.9
DD-C50GF	50/62.5	55/68.75	E	1700*730*1100	680	4BTA3.9-G2	58/64KW	4*102*120	≤212	3.9
DD-C60GF	60/75	66/82.5	E	1830*730*1120	700	4BTA3.9-G11	70/80KW	4*102*120	≤208	3.9
DD-C80GF	80/100	88/110	E	1900*750*1200	800	4BTA3.9-G13	87/97KW	4*102*120	≤208	3.9
DD-C85GF	85/106.25	92/115	E	1900*760*1200	900	4BTAA3.9-G3	96/106KW	4*102*120	≤206	3.9
DD-C80GF	80/100	88/110	M	2100*800*1200	1000	6BT5.9-G1	86/92KW	6*102*120	≤228	5.9
DD-C80GF	80/100	88/110	E	2100*800*1200	1000	6BT5.9-G2	86/92KW	6*102*120	≤212	5.9
DD-C85GF	85/106.25	92/115	E	2180*800*1350	1000	6BT5.9-G2	96/106KW	6*102*120	≤212	5.9
DD-C90GF	90/112.5	99/123.75	E	2250*800*1350	1100	6BTA5.9-G2	106/116KW	6*102*120	≤211	5.9
DD-C100GF	100/125	110/137.5	E	2350*820*1350	1200	6BTAA5.9-G2	120/132KW	6*102*120	≤208	5.9
DD-C128GF	128/160	140/175	E	2350*820*1350	1300	6BTAA5.9-G12	140/155KW	6*102*120	≤206	5.9
DD-C150GF	150/187.5	165/206.25	M	2400*850*1450	1500	6CTA8.3-G1	163/180KW	6*114*135	≤215	8.3
DD-C150GF	150/187.5	165/206.25	E	2400*850*1450	1500	6CTA8.3-G2	163/180KW	6*114*135	≤211	8.3
DD-C160GF	160/200	176/220	E	2500*850*1450	1600	6CTAA8.3-G2	183/203KW	6*114*135	≤205	8.3
DD-C200GF	NA	220/275	E	2500*850*1450	1650	6CTAA8.3-G9	--/231KW	6*114*135	≤202	8.3
DD-C200GF	200/250	220/275	E	2600*1020*1550	1700	6LTAA8.9-G2	220/240KW	6*114*145	≤197	8.9
DD-C200GF	200/250	220/275	E	2600*1020*1550	1700	6LTAA8.9-G3	230/250KW	6*114*145	≤195	8.9
DD-C220GF	220/396	240/300	E	2700*1100*1650	1900	6LTAA9.5-G3	250/280KW	6*116.5*148	≤193	9.5
DD-C250GF	250/312.5	275/343.75	E	2700*1100*1650	1900	6LTAA9.5-G1	290/320KW	6*116.5*148	≤199	9.5
DD-C300GF	300/375	330/412.5	E	3000*1400*1850	2500	6ZTAA13-G3	340/380KW	6*130*163	≤198	13
DD-C350GF	350/437.5	385/481.25	E	3000*1400*1850	2500	6ZTAA13-G2	390/415KW	6*130*163	≤198	13
DD-C360GF	360/450	400/500	E	3100*1450*1950	2550	6ZTAA13-G4	400/415KW	6*130*163	≤197	13
DD-C360GF	360/450	400/500	ECM	3150*1450*1950	2800	QSZ13-G2	400/440KW	6*130*163	≤191	13
DD-C380GF	380/475	420/525	ECM	3150*1450*1950	2800	QSZ13-G5	411/470KW	6*130*163	≤193	13
DD-C400GF	400/500	460/575	ECM	3150*1450*1950	2900	QSZ13-G3	450/470KW	6*130*163	≤195	13
DD-C420GF	420/525	462/577.5	ECM	3200*1450*1950	2900	QSZ13-G10	463/509KW	6*130*163	≤197	13
DD-C450GF	450/562.5	500/625	ECM	3300*1500*2000	3000	QSZ13-G11	512/562KW	6*130*163	≤198	13

Packaging & Shipping wood pallet packaging or customized.
shipping by sea or as your requests.
Company Profile Yangzhou East Power Equipment Co.,Ltd is located inthe famous historical and cultural city of China.which nameis Yangzhou.Our company has many years of generator, diesegenerator set Production experience.Concentrate on thequality of survival,technological development as purposes,Focus on the research of new products, and these ideas madeour products come up a new level of production technologyand quality.
We continue to take international advanced businessmanagement models,and keep attracting research personneland technical personnel to join us.therefore our workinggroup becomes bigger and bigger day by day. Whetherpre-sales support or after-sales service, always bring our usersthe most reasonable answer as well.and The most perfecttechnical solution to solve the worries of the majority of users!
Our company produce the diesel genset of all kinds ofbrands which belongs to china and overseas.and our productswidely used in high rise office buildings, hotels, hospitals,Industrial and mining, rural areas, mountain field operations,enterprises, institutions, schools or professional households etThe main products are:semi-automatic,Automatic,Low noiseTwo, three, four wheel mobile diesel generator set series.Specifications and Models from 5 kw to 3000 kw.
Our intelligent generator set is widely used in electricpower, post and telecommunications, and otherdepartments, got Customers highest praise.Qur companywill keep"customer first, service first"service and providingyou with a full range of services.
Our Advantages Our company specializes in high-quality generator solutions, offering reliable performance, advanced technology, and energy efficiency. With a strong commitment to customer satisfaction, we provide tailored products and services to meet diverse power needs. Backed by a professional team and robust after-sales support, we ensure seamless operation and long-term value for our clients.
Let me know if you want this customized further!
FAQ 1. What types of generators do you offer?
We provide a variety of diesel generators, and power solutions for industrial, commercial, and residential use, both as standby and primary power sources.
2. How do I choose the right generator?
Selecting the right generator depends on your power requirements, usage (standby or primary), fuel type, operating hours, and installation environment. We can provide professional advice to ensure you choose the most suitable equipment.
3. What is the power range of your generators?
Our generators have a wide power range, from small portable generators (25-2000kW) to large industrial generator sets (hundreds to thousands of kW), meeting various power demands.
4. Do you offer customized services?
Yes, we provide customized generator solutions based on specific customer needs, including specification adjustments, accessory options, and special configurations.
5. What is the warranty period for your generators?
Our generators typically come with a warranty period of 1 year (depending on the model and application) or 1000hours. During the warranty period, we offer free repairs and technical support.
6. Do generators require regular maintenance?
Yes, to ensure reliable operation, regular maintenance is recommended, including oil changes, filter inspections, battery testing, and load runs. We offer maintenance plans and support services.
7. Do you provide installation and commissioning services?
Yes, our team can provide professional installation and commissioning services to ensure the equipment is correctly installed and operates smoothly.
8. What is the fuel consumption of the generators?
Fuel consumption depends on the generator's power rating and load conditions. We can provide fuel efficiency data for specific models upon request.
9. How can I contact after-sales support?
You can reach our after-sales support team via our customer service hotline, email, or online support platform, and we will resolve your issues as soon as possible.
10. Do you offer generator rental services?
NO, we only sale gensets.

---
