PE PP PVC PA EVA Pet ABS Engineering Plastic Electric Waste Granulator

Product Description

Product Description

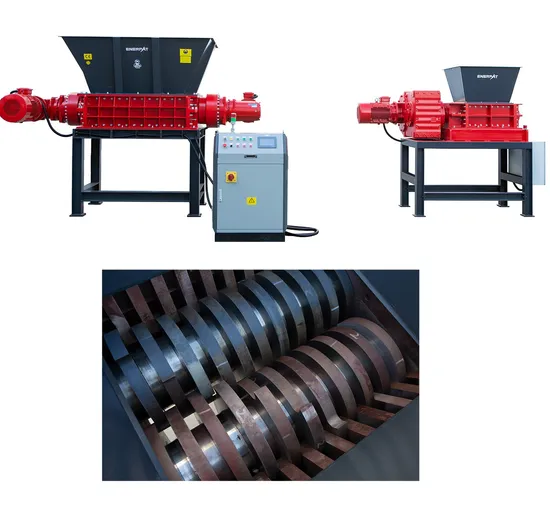

Two Shafts Shredder (MSB-E Series) MSB-E Series Two Shafts Shredders are small to large size reduction machines suitable for processing a wide range of materials to a smaller size. The products can often be sold as is, or be sent for further processing through additional equipment. Throughout typically range between 300kg/hr - 20,000kg/hr+ depending on the model, material type and application.

MSB-E Series Two Shafts Shredders are widely used in the volumetric reduction of various waste products, including but not restricted to the following. Light Scrap Metals,Bulky Waste,Wood Waste,Plastic Waste,Cardboard waste,Textiles Waste,Domestic Rubbish & Electronic Waste. The Output material discharged by the shredder could be an end product or the primary feed for the next process.

Details
Twin Shaft Electric Waste Granulator

Detachable box
1. The shredding chamber body can be deconstructed from each end of the coupling. The main shaft can be detached as a whole by removing the mounting plate at each end of the bearing.
2. Once the main shaft is dismantled,the cutter body and bearings can be kept and inspected,and if need be,then it can be replaced as well.
3. Regarding the processing of the shredding chamber, care should be taken to position the main shaft and bearing at central position during installation to ensure that the structure remains intact and lasts longer.
Heavy-load planetary reducer
1. It has a box of rigid casting reducer consisting of gussets.
2. The sturdy finishing gear is composed of high-quality steel alloy,and the surface is processed through carburizing and quenching methods.
3. Then,the structure is finely processed by means of gear grinding.This through process ensures many operational benefits,such as stable transmission power, low noise and greater carrying capacity.

Detachable cutter
1. Detachable blade design greatly reduces blade replacement time
2. A complete crushing blade comprises of three parts.
3. It is quite easy to replace a worn blade: simply loosen and tighten the bolt.
Electric system
1. The electric cabinet is equipped with a Siemens/Schn eider PLC.
2. The electric cabinet boasts a touch screen with a high capability of promoting human-machine interaction.
3. Siemens/Schn eider electrical components are adopted.
Sealing system
1. The bearing has a quadruple sealing protection design which makes it dust proof and waterproof, effectively prolonging the service life of the bearing.
2. Therefore,it can work excellently in an outdoor, highly dusty environment.
Auxiliary system
1. A pressing device is optional.It can help to crush materials rapidly.
2. A rotating screen is optional,and it guarantees dimensional uniformity of crushed products.
Splined main shaft
1. The moving blade base and the main shaft align in spline transmission.
2. The design consist of a large surface junction without stress concentration.
3.The spiral configuration of the moving blade base can enhance its crushing efficiency and reduce energy consumption.
4. The moving blade base has been tested by using 100% ultrasonic and non-destructive inspection to maximize the cutter's crushing capacity. dimensional uniformity of crushed products.
Heavy-load self-aligning bearing
1. We install heavy-load self-aligning bearings on two main shafts.
2. When a blade is impacted by a heavy load,the heavy-load self-aligning bearing produces an immense mechanical action that relieves the impact force.
3. We choose the world's leading bearings.of brands such as F AG and S KF as a standard configuration for all ENERPAT shredders.
Applications
Crushing Effect
Technical Data Sheet

Model	MSB-E300	MSB-E600	MSB-E800	MSB-E1000	MSB-E1200
Motor Power (KW)	7.5/11	11/15	15/30/60	37	44/90/150
Blade Diameter (mm)	∅170-300	∅270-300	∅270-450	∅270-450	∅320-520
Shaft Speed (RPM)	13-18.5	9-32	10-32	10-32	7.5-32
Shredding Chamber Length (mm)	300	600	800	1000	1200
Blade Material	Germany	Germany	Germany	Germany	Germany
Blade Thickness (mm)	20	20/30	20/30	30/40	30/40
Machine Size (mm)	1500×1300×1850	2500×1300×1850	2700×1300×1850	3300x1900x2200	3600×2000×2200
Machine Weight (kgs)	1000	1500	2300	5200	6400

Model	MSB-E1600	MSB-E1800	MSB-E2000	MSB-E2200
Motor Power (KW)	90	180/220	180/220	220
Blade Diameter (mm)	∅450-800	∅450-800	∅450-800	∅450-800
Shaft Speed (RPM)	5.5-14.5	5.5-14.5	5.5-14.5	5.5-14.5
Shredding Chamber Length (mm)	1600	1800	2000	2200
Blade Material	Germany	Germany	Germany	Germany
Blade Thickness (mm)	50/75/100	50/75/100	50/75/100	50/75/100
Machine Size (mm)	5500×2200×2600	7000×3100×4000	7500×3500×4400	8000×4000×5000
Machine Weight (kgs)	30000	34000	40000	45000
