Industrial automatic pasteurized milk processing line

Product Description

Product Description
Industrial automatic pasteurized milk processing line
This dairy processing milk plant produce several types of market milk products, i.e. whole milk, skimmed milk and standardized milk of various fat contents.
This dairy processing milk plant raw milk can be fresh milk or powder milk, the procedure method can be pasteurization or HTST pasteurizer or UHT processing.
End product package of this dairy processing milk plant can be plastic pouches, plastic cups, plastic bottles, glass bottles, roof top box etc. For this milk processing line according to different end product and package type, the production technology is differently designed but commonly include the following steps.
Description
Pasteurized milk: pasteurized milk processing line by pasteurization is characterized by low temperature sterilization at 72-85 ℃. It can kill harmful bacteria in milk and preserve nutrients and pure taste.
Production line introduction:
After centrifugation, standardization, homogenization, sterilization and cooling, the whole process is seamless. This production line project,
customers can choose to do UHT high temperature milk, pasteurized milk, lactic acid bacteria drinks, yogurt drinks, etc.
The packaging is diversified and can be customized according to the demand.
This milk production line produces several types of pasteurized milk products, i.e. whole milk, skimmed milk and standardized milk of various fat contents.
First the milk is preheated and standardized by in line milk fat standardization system. The purpose of standardization is to give the milk a defined, guaranteed fat content.
Common values are 1.5% for low fat milk and 3% for regular grade milk, fat contents as low as 0.1 and 0.5 % is skimmed milk.
Then the standardized milk is homogenized. The purpose of homogenization is to disintegrate or finely distribute the fat globules in the milk in order to reduce creaming.
Homogenization may be total or partial. Partial homogenization is a more economical solution, because a smaller homogenizer can be used.
The milk now is pumped to the heating section of the milk heat exchanger where it is pasteurized. The necessary holding time is provided by a separate holding tube.
The pasteurization temperature is recorded continuously. Pump is a booster pump which increases the pressure of the product to a level at which the pasteurized product
cannot be contaminated by untreated milk or by the cooling medium if a leak occur in the plate heat exchanger. If the pasteurization temperature should drop,
this is sensed by a temperature transmitter. A signal activates flow diversion valve and the milk flows back to the balance tank.
After pasteurization the milk continues to a cooling section in the heat exchanger, where it is regeneratively cooled by the incoming untreated cold milk, and then to the cooling section
where it is cooled with ice water. The cold milk is then pumped to the filling machines.
Temperature and pasteurization holding time are very important factors which must be specified precisely in relation to the quality of the milk and its shelf life requirements.
The pasteurization temperature is usually 72 – 75C for 15 – 20 sec. A common requirement is that the heat treatment must guarantee
the destruction of unwanted microorganisms and of all pathogenic bacteria without the product being damaged.
Our strengths:
*It can be designed according to the special requirements of users
*Multiple products can be produced on the same production line
*Application of high technology to save energy consumption
*It can produce high quality products and keep nutrients
*Aromatic substances can be added and mixed precisely
*Extend the shelf life of products
*Large output and small loss
Fresh milk collecting system
Fresh milk collected from the dairy farm needs to be stored in the refrigeration tank at low temperature. In order to ensure the
rigor of the production line, it needs to be weighed and preliminarily filtered.

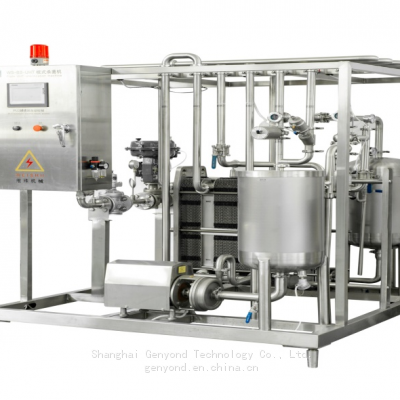

Milk pasteurization system
Full automatic PLC control system, fully closed, clean and pollution-free, sterilization temperature is stable, set material heat recovery section, and energy saving, can connect homogenizer, degasser.
Filling and packaging system
The packaging of milk is diversified, we can customize the packaging machine for customers according to the actual demand.
From filling to packing, all connected by conveyor belt, can achieve automatic production.We have PET bottle, glass bottle, cans and pouch for you to choose from.
Milk tank
Homogenizer
CIP cleaning system
