Reduce Punch Press Wear Long Life Automated Tool Sharpening

Product Description

Main Feature:
01. Automatic sharpening(Automatic tool setting, automatic removal).
02. PLC control, automatically complete the grinding process of rough grinding, fine grinding, polishing, etc.
03. Grinding accuracy: flatness±0.01MM.
04. The upper mold of AMADA 85 series AB station only needs to remove the pipe, and then the chuck can be installed for sharpening.
05. Automatic lubrication system.
06. Automatic cooling system(Prevent tool grinding and annealing).
07. Automatic liquid level detection system(Automatically alarm and stop when the coolant is lacking to prevent tool grinding and annealing).
08. Automatic filtration system(Filter cotton can be washed and reused).
09. Safety door protection and alarm function.
10. Grinding overload protection system.
11. Spindle upper limit alarm function.
12. Emergency stop alarm function.
13. Interrupt return function.
14. Exhause system helps trap remaining swarf.
Parameter:

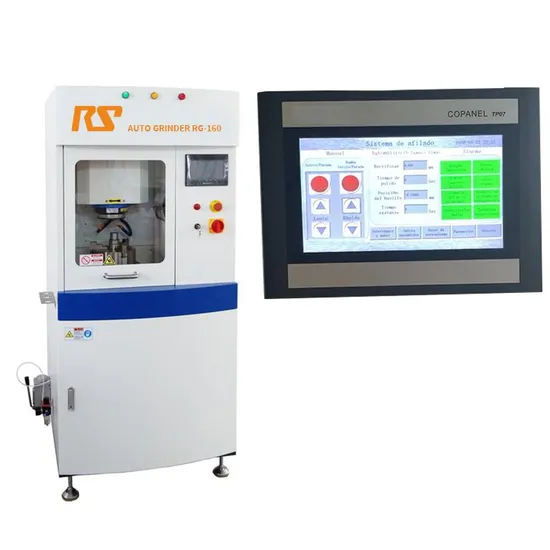

Name	RG-160
Voltage	AC380V, 50HZ
Power of Main Motor	2.2KW, 2840 RPM
Motor of Rotating Table	0.100KW, 1440 RPM
Servo Motor	0.75KW
Cooling Motor	0.045KW
Maximum grinding diameter	160mm
Maximum grinding stroke	200mm
The diameter of grinding wheel	135mm
Minimum step	0.01mm
Measurement of machine (L x W x H)	820X820X1810mm
Weight of Machine	600KG

FAQ
1.How many models of grinding machine are there?
A: We have 3 models. RG-160;WG-150;IS-160
2.Which brands of molds are suitable for?
A: Suitable for Amada,Murata and Trumph.
3.How can I choose the right fixture?
A: As each brand has different mold sizes, you can contact us.

---
