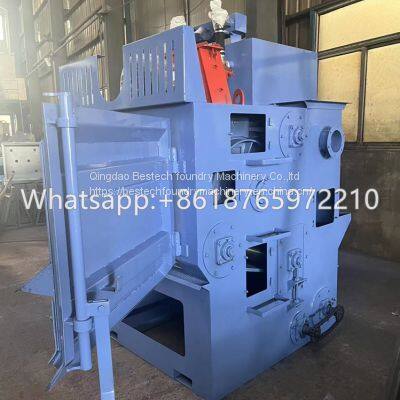

tumble belt shot blasting abrator machine rubber tracked shot blasting machine

Product Details

Product Description

Product Description
Operation
The loading device loads work pieces directly into the blast machine from containers, pallets or so-called charging baskets. The work pieces slide through the open loading door and onto the advancing caterpillar tread.
The loader subsequently returns to its initial position. The blasting process begins after the loading door is automatically closed and then locked. After the blasting period ends, the door opens automatically. The freshly blasted work pieces are removed in sequence by a take-off conveyor, or by emptying them directly into containers provided by the customer.
The blasting abrasive is continuously cleaned, recirculated and reused. An abrasive metering device feeds the cleaned abrasive from the abrasive storage bunker to the high-performance turbines.
A fan unit creates the partial vacuum necessary to maintain dust-free operation of the blasting unit. Extracted air is cleaned in a special filter unit.
Technical Parameter

item	units	Q326C	QR3210	15GN	28GN
productivity	t/h	0.6-1.2	1.5-2.5	5-6	10-12
feeding amount	kg	200	600	1300	3500
max.weight of single piece	kg	10	30	230	363
diameter of end disk	mm	650	1000	1092	1245
efectve volume	m3	0.15	0.3	0.43	0.79
shot-blasting capacity	kg/min	100	250	480	700
air volume for dedusting	m3/h	2200	5000	5300	6500
power consumption	kw	12.6	24.3	49.3	64.5
outline dimension	mm	3681*1650*5800	3972*2600*4768	4597*3262*5709	5300*5432*6814

whatsapp:+8618765972210
email:cassie@besttechmachinery.com

---
