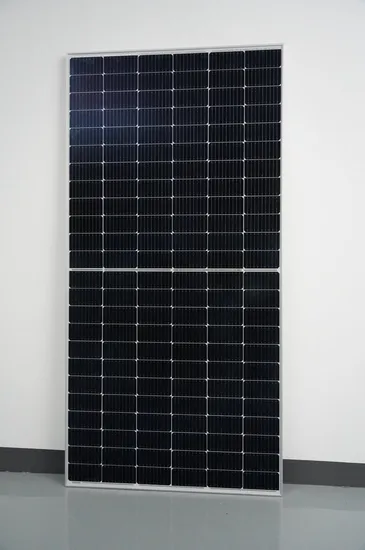

550W High Power Density Mono Solar Module

Product Description

IntroductionAssembled with PERC cells, the mono half-cut single module offers higher power output, improved cell temperature-dependent performance, reduced shading effects, lower risk of hot spots, and enhanced tolerance for mechanical loading. This industrial commercial monocrystalline solar panel is ideal for home use, ensuring efficient solar energy production. Upgrade your solar power system with this high-quality module for reliable and sustainable energy generation.
Parameters

ELECTRICAL PARAMETERS AT STC
Model Type JMDxxxP-144M(xxx=Pmax)
Maximum Power (Pmax/W)						540	545			550	555	560
Open Circuit Voltage(Voc/V)						49.55	49.75			49.95	50.10	50.25
Short Circuit Current(Isc/A)						13.89	13.97			14.05	14.12	14.19
Maximun Power Voltage(Vmp/V)						41.62	41.80			41.97	42.12	42.28
Maximum Power Current(Imp/A)						12.98	13.05			13.11	13.18	13.25
Module Efficiency(%)						20.90	21.10			21.30	21.50	21.70
* Under Standard Test Conditions (STC) of irradiance of 1000 W/m², spectrum AM 1.5 and cell temperature of 25°C.
ELECTRICAL PARAMETERS AT NOCT
Maximum Power (Pmax/W)						407	411			414	417	421
Open Circuit Voltage(Voc/V)						46.38	46.50			46.63	46.77	46.90
Short Circuit Current(Isc/A)						11.08	11.12			11.17	11.22	11.27
Maximun Power Voltage(Vmp/V)						38.95	39.16			39.32	39.46	39.65
Maximum Power Current(Imp/A)						10.46	10.50			10.53	10.57	10.62
* Under Nominal Module Operating Temperature (NOCT), irradiance of 800 W/m², spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.
TEMPERATURE CHARACTERISTICS
NOCT		45±2°C				Temp Coefficient of Isc		+0.046%/°C
Temp Coefficient of Voc		-0.275%/°C				Temp Coefficient of Pmax		-0.350%/°C
PACKING CONFIGURATION
Packaging box dimensions(L*W*H)	2300*1110*1260mm	Box weight	872 kg
Modules/Pallet	31 Pieces	Modules/40'Container	620 Pieces

FeaturesExperience the following benefits with our cutting-edge solar PV modules:Higher Durability: Our multi-busbar design reduces the risk of cell micro-cracks and broken fingers.PID Resistant: Tested according to IEC 62804 standards, our modules are resistant to Potential Induced Degradation, ensuring the security of your investment.High Power Density: Achieve high conversion efficiency and increased power output per square meter due to lower series resistance and improved light harvesting.Bigger Cells with Better Performance: A slight increase in cell size results in a six percent average performance boost in our latest modules. Assurance
Introducing the 550W High Power Density Mono Solar Module from Ningbo Star The Force International Trade Co., Ltd.
Experience first-class quality assurance with a 12-year warranty for material and technology, along with a 25-year linear power output warranty. This solar module is ideal for industrial applications, featuring 144PCS cells for maximum efficiency.
Trust in Ningbo Star The Force International Trade Co., Ltd. for reliable and high-performance solar solutions.
Certifications
Welcome to Ningbo Star The Force International Trade Co., Ltd.Our company specializes in providing high-quality products that meet international standards. Some of the certifications we adhere to include:
IEC61215IEC61730ISO9001: 2015 Quality management systemsISO 14001: 2015 Environmental management systemsISO 45001: 2018 Occupational health and safety management systemsWith a focus on quality, environmental sustainability, and occupational health and safety, we ensure that our products are not only reliable but also meet the highest industry standards.
Applications
Home Power Supply: Utilize solar panels installed on rooftops or balconies to power home lighting, appliances, and other devices.
Industrial Applications: Enhance industrial production processes by combining solar panels and battery packs to ensure continuous and stable power for machinery, equipment, and lighting facilities.
Transportation: Implement solar panels to power vehicles like cars, planes, and ships, reducing energy costs and carbon emissions.

---
