Manufacturer′s Direct Sales and Customized Production of Conical Mixer for Feed

Product Description

Manufacturer's direct sales and customized production of conical mixer for feed
The SLH double helix conical mixer is a new and efficient powder particle mixing equipment, widely used for mixing dry materials in industries such as petrochemicals, metallurgy and mining, pigments, pharmaceuticals, dyes, pesticides, food and feed.
This model has strong adaptability to mixed materials, does not overheat thermosensitive materials, and is not easy to crush and grind granular materials. Compared with materials with significant differences in heavy particle size, it can be mixed evenly without layer separation. It also has good adaptability to the mixing of various coarse materials, fine materials, ultrafine powders, and multi-dimensional or sheet-like materials.
This machine has a beautiful appearance, advanced mixing types, and reasonable structural design. Compared with other types of mixers, it has advantages such as fast mixing speed, high mixing accuracy, low power consumption, large loading coefficient, stable and reliable operation, good operating conditions, convenient cleaning and maintenance, and long service life. Due to the use of a bidirectional fully sealed structure, the problem of dust pollution during operation has been solved, and the working conditions have been improved. This device can also achieve continuous production process. The double spiral conical mixer is therefore an ideal energy-saving, efficient, and pollution-free powder particle mixing equipment.
2, Structure

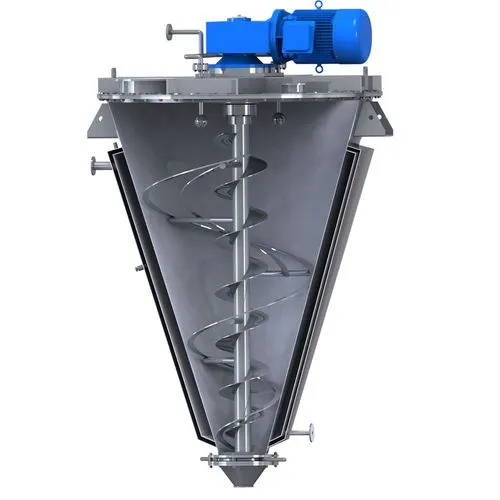

The structure of the SLH mixer is shown in Figure 1. It mainly consists of five parts, including the cylinder, motor reducer, transmission mechanism, spiral part, and discharge valve part.
L - Motor and reducer
2- Transmission mechanism
3- Cylinder
4- Spiral section
5- Discharge section
The double helix conical mixer is driven by a top electric motor to drive a two-stage double output shaft cycloidal pinwheel planetary reducer, which outputs two speeds of revolution and rotation. Through transmission distribution and gear transmission, the two spiral rails operate in a planetary manner.
Two asymmetric spiral axes rotate and move in a planetary motion along the simplified wall simultaneously. The short spiral moves closer to the careful area, improving the mixing at the center and achieving a fast and uniform mixing effect.
The transmission components of this machine adopt multiple channels. The multifunctional sealing structure can effectively prevent dust from entering the bearings and lubricating grease from seeping out and contaminating materials.
3, Working principle
The working principle of the SLH double helix conical mixer is:
1. The rapid rotation of the double helix lifts the material upwards, forming two asymmetric screw material flows along the cylinder wall and the middle white downward upward (Figure 2A); 2. The rotary arm drives the circular motion of the screw, causing the material outside the screw to enter the envelope of the butterfly column to varying degrees. Some of the material is lifted by the lead position, and another part of the material is thrown out of the screw column, thereby achieving continuous diffusion of the material in all circumferential directions (Figure 2B); 3. The two asymmetric materials lifted to the upper part converge towards the concave cavity, and the two material flows merge to form a downward flow, supplementing the holes of the bottom material and forming an asymmetric cycle (Figure 2C). Due to the aforementioned composite motion, the materials achieve uniform and high-precision mixing in a relatively short period of time.
Conical mixer for feed made in China
Equipment characteristic parameter table

model	SLH0.5 SLH0.5N	SLH1 SLH1N	SLH2 SLH2N	SLH4 SLH6N	SLH6 SLH6N	SLH8 SLH8N	SLH10 SLH10N	SLH15 SLH15N	SLH20 SLH20N	SLH30 SLH30N
Full volume((m3)	0.5	1	2	4	6	8	10	15	20	30
Loading parameters	0.4-0.6
mixed materials(μm)	40-900
Each production(kg)μ=0.8g/cm3	240	480	960	1900	2880	3800	4800	7200	9600	14400
power(kw)	2.2	5.5	5.5	11	11	18.5	18.5	22	30	42.5
mixing time(min)	4-8			8-15		15-30			30-60
Note: Each production is calculated based on a packing density of ρ=0.8/g/cm3 and a loading coefficient of 0.6. SLHx represents ordinary carbon steel material, SLHxN represents stainless steel material type

Company Profile Foshan Zhuoyuan Intelligent Equipment Co., Ltd. is a professional manufacturer of electromechanical integration equipment for fine chemicals and related fields. Taking science and technology as the guide, the company devotes itself to the application of domestic and foreign advanced technology, and focuses on serving small and medium-sized chemical enterprises.
Through interactive communication with customers, the company pays close attention to the diversified needs of customers, continuous improvement and innovation, to meet customer requirements, a win-win situation for both customers and owners, and to realize the global line of products.
We can provide equipment including: resin complete sets of equipment, dispersing equipment, mixing equipment, powder mixing equipment, cracking kettle silicone kettle complete sets of production equipment, glass adhesive MS adhesive complete sets of production equipment, double-planet power mixer series, etc., and can complete the overall design, integration, and installation of production lines of the related fields with our products as the core, which can be used in the production of coatings, printing ink, printing and dyeing auxiliaries, viscose, liquid Detergents, cosmetics, building materials, food and many other fields to provide service technology and equipment support.
· is located in Foshan, a famous cultural city with a long history and the economic center of the Pearl River Delta. Sincerely welcome new and old customers to come to us for inquiry and negotiation, and we will cooperate with you to create a better tomorrow with excellent quality, satisfactory price and attentive service!
Foshan Zhuoyuan Intelligent Equipment Co., Ltd. is a company that provides customers with liquid and powder transportation, mixing, stirring, kneading, packaging and other whole-plant automation of the overall solution provider and customized suppliers of special equipment, is committed to providing customers with automation design and transformation, and continue to develop and innovate, to solve the customer's process problems, to design highly efficient and environmentally friendly products, to improve productivity, to create value for the customer, and to contribute to the environmental protection.
Excellence extraordinary, sail away, the company adhering to the spirit of perseverance, not forgetting the original intention, forge ahead, in order to become the world's first-class equipment and total solution provider and efforts.
The company adheres to the quality first, let the product speak, adhere to the development of innovation, to provide customers with engineering design, equipment manufacturing, installation and commissioning services, and to provide turnkey projects, the implementation of a strict quality assurance system, to meet the needs of our customers with superb production level, advanced management and operation concepts, and quality after-sales service.
The company's main technologies and products:
1. chemical equipment whole plant design, manufacture and installation.
2. complete sets of equipment for unsaturated resins, emulsions, water-based PU, seamstresses, adhesives, paints and coatings, and hot-melt adhesives
3. complete sets of equipment for glass adhesive, MS adhesive, silicone, structural adhesive, electronic potting adhesive, thermal conductive adhesive and polyurethane adhesive, etc.
4 multi-function reactor, strong disperser, planetary mixer, double planetary power mixer, horizontal kneading machine, vertical kneading machine, vacuum disperser, concentric double shaft mixer
5 Horizontal double screw belt mixer, double screw conical mixer, vertical screw belt mixer, plow knife type fly cutter mixer, double shaft gravity mixer, powder mixing equipment
Enterprise vision: to become the world's first-class equipment suppliers of the overall program
Corporate values: make the best use of talents and materials.
Talent concept: Loyalty, Integrity, Responsibility, Learning.
Corporate Culture: Responsibility, Learning, Innovation, Execution, Growing together.

FAQ Q1:Are you a manufacturer?
Yes, we are a professional machine manufacturer with more than 15 years experience in overseas trade.
Q2:Can your machines be customized?
Yes, almost all of our products can be customized.
Q3:How about your package?
Our machines are first wrapped in plastic film for waterproofing, and then packed into plywood boxes for fixing. We can use wooden crates if shipped in full boxes.
Q4:How do you ship the finished product?
By sea, air, express, FedEx, UPS, etc.
Q5:Delivery time
Within 15-35 days after receiving the payment.
Q6:What is your after-sale service?
Any questions will be answered within 24 hours by email, Skype, phone or Whatsapp/WeChat. Besides, we have professional engineers available for overseas service...
Q7:If the spare parts of the machine is broken, where can I get them?
We will give you the perishable parts, some key parts, such as gear box, our quality is good, if it breaks within one year, we will send it to you for free.

---
