US$2,000.00-3,400.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Certification
CE, ISO 9001
Type
Stationary Lift Table
Scissor
Four Scissors Lifting Platform
Transport Package
1PC/Wooden Case
Specification
customizable
Production Capacity
1000PCS/Month
Packaging & Delivery
Package Size
175.00cm * 105.00cm * 75.00cm
Package Gross Weight
900.000kg
Product Description

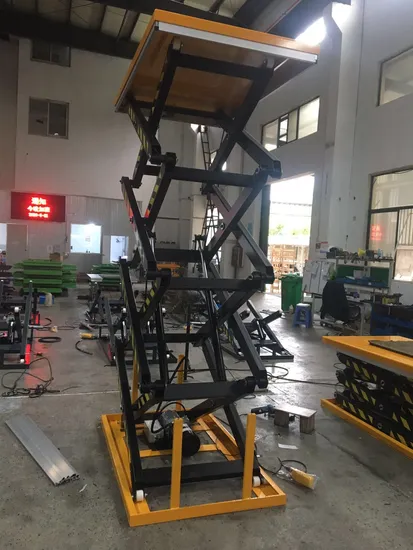

Hydraulic Electric Scissor Lift with Maintenance Hole
Heavy duty design.
Conforms to En1570 and ANSI/ASME safety standard.
Safety clearance between scissors to prevent from trapping.
Installed aluminum safety bar to prevent from trapping while descending.
Built-in relied valve and compensation flow control valve to fulfill overload protection and control
Lowering speed.
There is safety valve to stop the table or keep slow descending in case of hose burst.
Self-lubricating bushing in all pivot points to prolong the lifespan.
| Model | HF400 | HF800 |
| Capacity (kg) | 400 | 800 |
| Min. Height(mm) | 600 | 706 |
| Max. Height(mm) | 4140 | 4210 |
| Platform size(mm) | 1700× 1000 | 1700× 1000 |
| Base size (mm) | 1600× 1000 | 1606× 1010 |
| Raising time(S) | 30-40 | 65-75 |
| Descending time(S) | 30-40 | 75-85 |
| Power Pack | AC380V, 2.2KW | AC380V, 2.2KW |
| Net weight(kg) | 548 | 858 |
FAQ:
Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.
Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.
Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
>>
