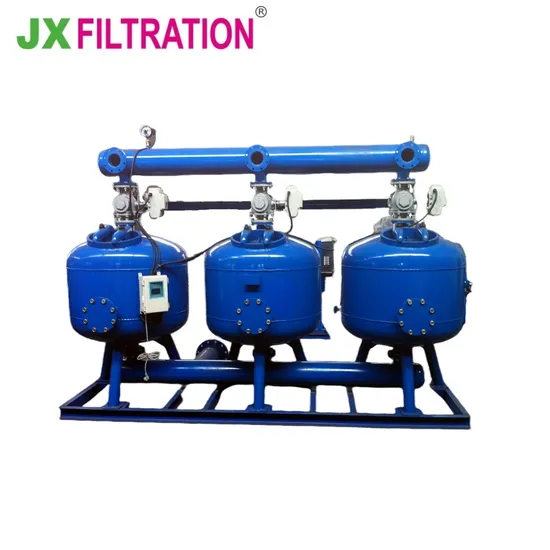

Carbon/Stainless Steel Filter Irrigation Sand Strainer Automatic Backwash Shallow Sand Filter for Water Treatment

Product Description

Product DescriptionJX Filtration sand filter system consists of one or more standard high-speed filtering units that can effectively remove particles and reduce turbidity. If feeding with particular media, such as activated carbon, anthracite, etc., correspondingly, the filter can also absorb and remove the organics, ions, etc.
Filtration Processing
Raw water enters from the filter inlet (1) and percolates through the filter bed (2). Suspended materials come into contact and attach to the media particles. Clean water flows through the filtration nozzles (3) and out of the filter via the outlet (4).
Cleaning processing
Pressurized water flows in the reverse direction from the nozzles upwards, causing the filter bed suspension, thus releasing the suspended matter
from the bedding. The dirt particles are then washed out of the filter through the back-flush valve.
When the pressure differential switch senses that the differential pressure across the system reached a preset value, a signal is sent to the flushing
controller. The self-cleaning process begins.
Features
1. High-speed flow and low-pressure loss.
2. Modular and compact design. (The area decreased by more than 40% and piping reduced by at least 50%).
3. Manual, semi-automatic, full-automatic backwash is optional.
4. Backwashing could choose filtering cleaning water or another water source, which is free to switch (when needed)
5. 16-96" vessels are combined to make flow expand freely.
6. Carton steel vessels and pipelines are anti-corrosion processed through phosphate surface treatment and 240ºC high-temperature electrostatic coating.
If there is a leak, we will replace the equipment free of charge.
Detailed Photos
Product Parameters

Model	Diameter (mm)	Inlet and Outlet (DN)	Filtering Area (mm)	Flow (agricultural)	Flow (Industrial)
JX-16	400	40/50	0.2	10	6
JX-24	600	50	0.3	15	11
JX-28	700	80	0.4	30	15
JX-32	800	80	0.5	35.5	20
JX-36	900	80	0.7	40	35
JX-48	1200	80	1.2	80	50

Certifications
Company ProfileJXFILTRATION®JX Filtration (China) Co., Ltd is a professional manufacturer of Wedge Wire Screen (Wedge Wire Screening), Automatic Backwash Filter, Rotary Drum Screen, Bag Filter Housing, Volute Dewatering Press. With highly mature production lines, we can provide high-quality and inexpensive products in large quantities.Because of the difference in raw material price, factory wages and other considerations, we have set up three factories in major cities of China to ensure our product quality and price advantage.
Our Belief: Your trust is priceless!
Our AdvantagesProfessional ServicesFAQQuestion 1: Are you manufacturer?
Yes, we are the manufacturer since year 2014.
Question 2: Can you provide OEM service?
Yes, we have more than 10 years of OEM experience and provide this service. Question 3: Can you provide sample? Free or chargeable?Yes, we can provide free sample for filter elements, all filter housings are chargeable.
Question 4: Does the product support customization?
Products can be customized base on our current mould.
Question 5: What is the payment terms?
50% advance,balance 50% before shipment(FOB terms).

---
