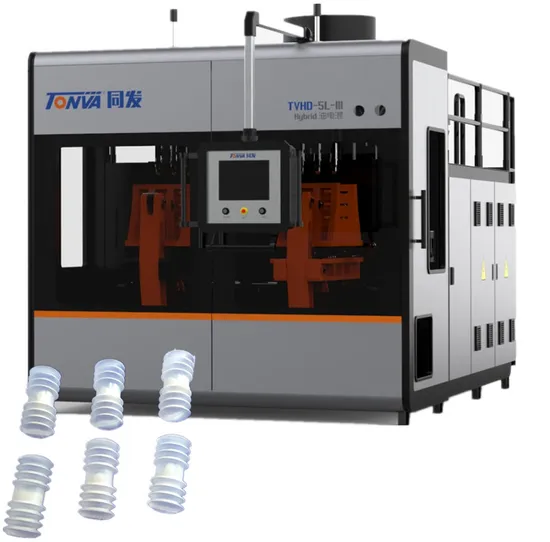

Stretch out and Draw Back Airbag Produce Making Machine

US$25,800.00 1 set (MOQ)

Basic Info.

Model NO.
TVHD-1L
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, QS
Performance
Good
Service
Oversea Serivce
Transport Package
Film Package
Specification
2.6X1.6X1.8M
Trademark
TONVA
Origin
Taizhou
Production Capacity
10000PCS/Day

Product Description


Double stations 4cavities(tube) Single layer Automatic trimming: Neck/Bottom Output: around 3000BPH Power supply: 380VAC 50HZ Water cooling: 20ºC (5HP Water chiller) Air source: 0.6Mpa, 0.6m³/min (1.2 m³/min Air compressor)
1 Unit TVHD-1L
Raw Material PE/PP/PA/PVC/PETG/ABS/PS/EVA/TPU etc
Machine Weight 2.3
Machine (L*W*H) m 2.6x1.6x1.8
Extrusion System
Diameter of Screw mm 55
Screw L/D ratio L/D 23:1
Plasticizing Capacity Kg/h 55
Heating Zones pcs 4
Heating Power kw 7
Screw Motor kw 7.5
Die Head
Heating Zones pcs 3
Heating Power kw 1.5
Power Consumption
Air Pressure Mpa 0.6
Air Consumption m3/min 0.6
Cooling water m3/h 0.6
Total Power kw 14-16
Clamping System
Clamping Distance m 150
Sliding Distance mm 320
Open Stroke mm 160-310
Mould Platen Size mm 280x300
Clamping Force kn 30
Working Condition
Piston Type Air Compressor kw 7.5
Water Chiller HP 3
