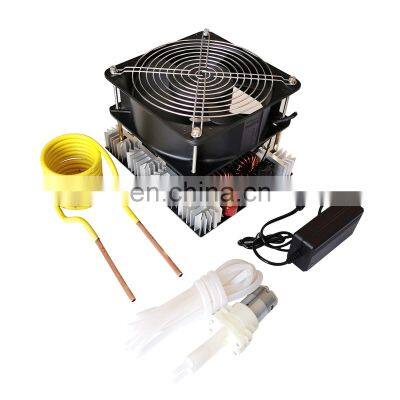

4000W ZVS Induction Heater Main Unit + Heating Coil + Water Pump + Pump Power SupplyProduct Description Description:Powered by DC48V and current up to 85A, it is a 4000W induction heater. It is mainly used for the heating and quenching of small ferrous metal materials.Features:- 2mm PCB with copper 2OZ in thickness. Large current with excellent heat dissipation performance- The heating coil is wrapped with high temperature resistant thermal insulation material to prevent short circuits during heating- With high-current power terminals, the input end can be directly connected to a dedicated 100A power meter- 180mm 220V cooling fan- Water pump for heating coil is includedSpecifications:- Dimensions: Approx. 220 x 180 x 150mm (L*W*H)- Inner Diameter of Heating Coil: 70 x 60 x 73mm or 105 x 90 x 90mm (Outer Diameter*Inner Diameter*H)- Input Voltage: DC48V- Maximum Power: 4000W- Maximum DC Operating Current: 85A- Metals including iron can be heated in 800-900℃Package Included:- 1 x Main Unit- 1 x Heating Coil- 1 x Water Pump- 1 x Pump Power SupplyAttention:- Please tell use the size of heating coil you want when purchasing. Thank you!- Other items in the pictures are not included.Note:- Please make sure that your power supply stably output current above 80A. Usually, 2pcs 50A communication power supplies can be used in parallel.- Please plug the power supply first. Wait a few seconds for the power supply to stabilize before turning on the power between the power supply and the board. 100A air switch is recommended. Please follow the above step or the main board will be damaged. When shutting down, first turn off the switch between the motherboard and the power supply, and then turn off the power switch.- Water cooling and air cooling must work at the same time. If any of them does not work, you should immediately disconnect the power and contact us for solutions.- If it is possible, get cold water in and hot water directly drained without circulation, so the heat dissipation effect will be better.- Please prepare spare crucibles by yourself.- It can be used with multimeters, when the voltage, current and the temperature of the main board are displayed abnormally, please disconnect the power.Wiring: Detail Photo Packaging & ShippingPackage: Normally we use the standard exporting packaging. We also can according to clients' request . Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.3. By Sea: Delivery from the Shanghai sea port .Company InformationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over8years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery FAQQ1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Samples arrived often need 3-5 days. Q3. Do you have any MOQ (minimum order quality)limit?A: Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive?A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional. Q5. How to proceed an order?A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production. Q6. Is it acceptable to print my logo on the product?A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample. Q7: Do you offer guarantee for the products?A: Yes, we offer one-year warranty for our products. Q8: How to deal with the flaw?A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%Contact usPlease do not hesitate to contact me if you need any further informationWhatsapp/Tel/Wechat: 8619902906050Web: Address: Room 303 Building 2,Youpin Cultural and Creative Park,Zhangkeng,Minzhi Street,Longhua District,518131,Shenzhen,China(Mainland)
>>
