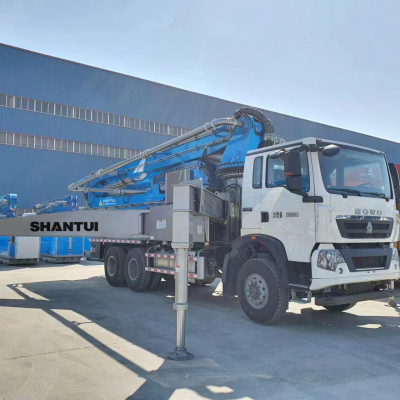

| 30m concrete Pump truck | ||
| I. CHASSIS II. | Chassis Brand | SINOTRUK |
| Emission standards | National III | |
| Power | 240HP | |
| Wheelbase | 5000mm | |
| Driving type | 4*2 | |
| steering wheel | Left hand drive | |
| Max driving speed | 90km/h | |
| II. Boom system | ||
| 1 | (M) Maximum vertical height of boom (M) | 29.2 |
| 2 | (M) Horizontal distribution radius of boom (M) | 25.9 |
| 3 | (M) Depth of distribution (M) | 18.8 |
| 9 | Rotating angle of each arm | 90°/180°/°360°/540° |
| 10 | Control mode of boom | Electric proportion |
| 11 | Folding type of boom | M M type |
| 12 | Rotating angle of turret | 540° |
| 13 | (MM) Span distance of front landing leg (MM) | 5840 |
| 14 | (MM) Span distance of rear landing leg (MM) | 4050 |
| 15 | (MM) Longitudinal distance between front and rear landing leg | 6300 |
| 16 | Opening mode of landing leg | X-H |
| 17 | (MM) Length of end hose (MM) | 3000 |
| 18 | (MM) Diameter of concrete delivery pipe (MM) | 125 |
| III. Electric Control System | ||
| 1 | （V）Working voltage: | 24 |
| IV.Hydraulic transmission system | ||
| 1 | Type of hydraulic system | Open type |
| 2 | (Mpa) System working pressure (Mpa) | 31.5 |
| 3 | (ml/r) Displacement of main hydraulic oil pump (ml/r) | 190 |
| 4 | (l) Hydraulic fuel tank capacity (l) | 450 |
| 5 | Cooling mode of hydraulic oil | Forced-air Cooling |
| 6 | High-low pressure changeover valve | None |
| V. Dimension and weight of whole truck | ||
| 1 | Total length (MM) | 9970 |
| 2 | Total width (MM) | 2500 |
| 3 | Total height (MM) | 3740 |
| 4 | Total weight (KG) | 19700 |
| VI. Pumping system | ||
| 1 | Form of concrete distribution valve | S valve |
| 2 | (Mpa) Maximum concrete outlet pressure (Mpa) | 10.5 |
| 3 | Reversing times of distribution valve | 24 |
| 4 | Inner diameter/stroke of delivery cylinder | 230/1650 |
| 5 | (MM） Maximum feeding height (MM) | 1450 |
| 6 | (M3 ) Hopper capacity (M3 ) | 0.65 |
| 7 | Slump of pumped concrete | 160-220 |
| 8 | （MM） Dimension of allowable maximum aggregate (MM) | 40 |
| 9 | Lubricating method | Centralized lubrication |
