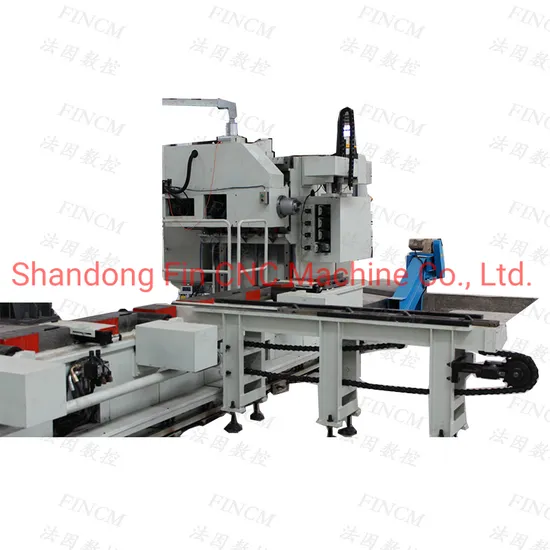

RDL25A FINCM Rail High-Speed CNC Rail-Road Hydraulic Drilling Chamferring Machine Rail height-128-192mm

Product Description

RDL25A FINCM Rail High-Speed CNC Rail-Road Hydraulic Drilling Chamferring Machine Rail height-128-192mm
Product Description
This machine tool is mainly used to process the connecting holes of the basic rail and the AT rail of the turnout rail. The drilling process using cemented carbide drills can realize semi-automatic production, reduce the labor intensity of workers, and greatly improve labor productivity.
Main Technical Specifications:

Specification of processed rail	Type of stock rail	43Kg/m,50Kg/m,60Kg/m,75Kg/m,UIC54,UIC60
	At rail model	50AT,60 AT,UIC60D40
	Special section wing rail	60TY
Rail size range	Bottom width	114-152mm
	Rail height	128-192mm
	Abdominal thickness	14.5-44mm
	Rail length (after sawing)	6-25m
	texture of material	U71Mn σb≥90Kg/mm² HB250 PD3 σb≥98Kg/mm² HB290-310
Drilling bit	Diameter	φ20~φ33
	Length range	3D~4D
Processing requirements	Range of hole height	35~100mm
	Number of holes on each rail	1~4
	Allowable deviation of adjacent hole spacing	±0.3mm
	Allowable deviation between rail end face and nearest hole distance	±0.5mm
	Allowable deviation of farthest hole distance of rail	±0.5mm
	Allowable deviation of aperture size	0~+0.3mm
	Hole wall roughness	Ra12.5
	Allowable deviation of hole center height (from rail bottom)	±0.3mm
Mobile column (including drill pin power box)	Quantity	1 set
	Spindle taper hole	BT50
	Spindle speed range (stepless speed regulation)	10~3200r/min
	Spindle servo motor power	37kW
	Vertical slide stroke (Y-axis)	800mm
	Servo motor power of vertical sliding table (Y-axis)	3.1kW
	Horizontal drilling feed stroke (Z-axis)	350mm
	Horizontal drilling feed (Z-axis) servo motor power	3.1kW
	Horizontal travel of column (x-axis)	25m
	Column horizontal movement (x-axis) servo motor power	3.1kW
	Maximum moving speed of x-axis	10m/min
	Y. Maximum moving speed of z-axis	8m/min
Electric permanent magnet sucker	Quantity	1 set
	Sucker size (L × w × h)	250×200×120mm
	Working suction	≥200N/cm²
Side push cylinder	Cylinder diameter × stroke	Φ50×70mm
	Single cylinder side thrust	700Kg
Lifting roller table	Quantity	1 set
	Conveying speed	≤15m/min
Auxiliary hold down cylinder	Quantity	1 set
	Pressing force	≥1500Kg/set
Chip removal	Chip conveyor type	Flat chain
	Chip removal speed	2m/min
	Chip removal motor power	2.2kW
Hydraulic system	Quantity	2 sets
	Hydraulic pump pressure / flow / power	6-6.5Mpa/25L/min/4kW 1 set
	Hydraulic pump pressure / flow / power	5.5-6Mpa/66L/min/7.5kW 1 set
Electrical system	Numerical control system	Siemens 828d
	Number of CNC axes	5+1
	Compressed air supply pressure	0.6Mpa
	Overall dimensions (L× W× H)	About 57m×8.7m×3.8m

Work Environment:
1).Power supply: 3 phase 4 lines 380±10%V 50±1HZ
2).Compressed air pressure: ≥0.5MPa
3).Temperature: 0-40°C
4).Humidity: ≤75% Company Profile
