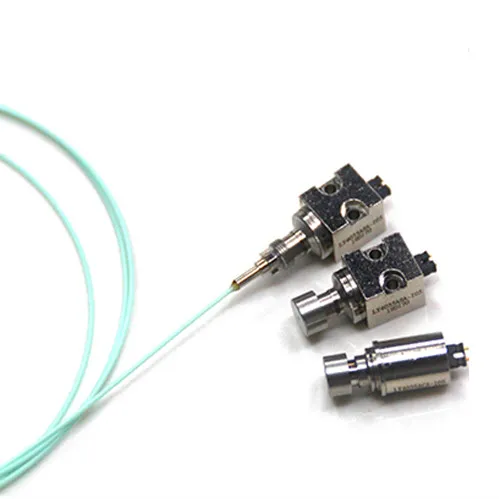

Violet 405nm 600MW Fiber Coupled Laser Module for Ldi Laser Direct Imaging

Product Description

Specification:
Wavelength: 405nm
Output Power(CW): 600mw
Type: Fiber Coupled Laser
Violet 405nm 600MW Fiber Coupled Laser Module for Ldi Laser Direct Imaging
I. Product Description:
Absolute Maximum Ratings (Tc=25ºC)

Items	Symbol	Min	Typ	Max	Unit	Condition
Optical Output Power	Po	/	600	/	mW
LD Reverse Voltage	VR(LD)	/	2	/	V
Operating current	Iop	/	420	500	mA
Operating Voltage	Vop	/	4.4	5.4	V
Laser Wavelength	λp	400	405	410	nm

Remarks: We offer professional ODM and OEM service, so the housing size, power, beam Shape, beam Size, and the wire length of the laser module can be customized!

II. Packaging&Shipping:
1. Plastic box, ESD bag, standard and normal package.
2.3-5 days after receiving the payment by T/T, PAYPAL, and other ways.
3. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.
II. Company Information&Services:
A. Main products: Semiconductor laser diode, laser module, bicycle laser light.
B. Since the establishment, DongguanBlueuniverse Laser Co., Ltd has its own brand "LANJI, VIAN", access to China's outstanding semiconductor laser supplier reputation, with a number of domestic and foreign technology patent certification, product quality inspection certification and TUV, BV, SGS, ISO9001: 2015 quality management system certification.
C. Custom Service:
We offer professional ODM and OEM service for the laser module. We are a manufacturer of laser modules, also a provider of Laser light source solution from design to production. A normal laser module always has the following 4 parts:
1. Laser Diode
We have laser diodes with power from 5mw to 5W with the following wavelength: 405nm 410nm 445nm 450nm 455nm 488nm 505nm 510nm 515nm 520nm 532nm 635nm 638nm 642nm 650nm 658nm 780nm 785nm 808nm 820nm 830nm 850nm 905nm 940nm 980nm RGB and so on.
2. Optical Lens
The laser beam of the laser module will depend on the inner optical lens. Except for dot, line and cross beam, we also can do other laser beams with DOE according to your requirements.
3.PCB Driver
We have normal 3-5V APC driver, and also other 6V and 12V PCB with TTL modulation. Please let us know the input voltage of the laser module you would like at first, we will recommend you the most suitable solution.
4.Housing
The Size of the laser module ( diameter and length) can be customized according to your requirement, we will evaluate and provide technical drawings for you.
IV. Laser Application Range :
Our lasers have been successfully applied to: laser security, non-contact testing, laser radar, dust detection, scanning detection, face recognition, 3D printing, laser engraving, human-robot interactive, AR, medical beauty, laser network, stage lighting, barcode scanning, camera focusing, night vision, geological exploration, indication positioning, Optical display, optical storage and other industries.
V. Warranty:
All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here, please inform us within 3 days of receipt. We can arrange the replacement for you if the situation is confirmed.

---
