Fully Automatic Metallographic Specimen Cutting Machine for Diameter 100mm Round Bar Sample

Product Description

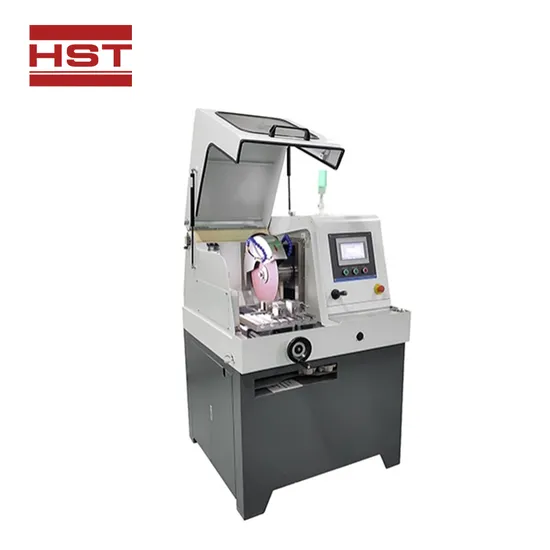

HST-LDQ100Z LCD Touch Screen Fully Automatic Metallographic Specimen Cutting Machine
Product Description
Applications:
HST-LDQ100Z Fully Automatic Metallographic Specimen Cutting Machine can both manual cutting and automatic cutting. It has the X-axis moving worktable, can automatic/ manual Y-axis continuous cutting.
The device can be used for a variety of shapes and sizes of materials sample cutting.
Its cutting capacity meet production testing and laboratory routine use of cutting samples.

Model	HST-LDQ100Z
Cutting disc	400 * 3 * 32mm
Spindle speed	500-3000r/min
Feed speed	0.01- 3 mm/s
Cutting stroke (Y axis)	200mm
Cutting stroke (X axis)	45mm
Cutting way	Manual/Automatic
Maximum cutting capacity	Φ100mm round bar or with special fixture can be cut: long 200x wide 240x high 80mm cuboid
Maximum length of clamping table	120mm
Table size	282mm*240mm
Cutting clamp	Fast push-pull type, the height of the clamp mouth is 60mm
The key control	LCD touch screen, button
lighting	Dual LED lighting
Cooling device	Two lines of cooling water and a cooling water gun
Magnetic filter circulating water tank	80L
Servo motor	Power: 4 kw
Emergency brake	The abrupt stop switch
Power supply:	AC380V 50HZ
Overall dimensions	1050*800*1471mm
weight	300KG

Company Profile

Exhibition

Our Customers

Certifications

Packaging & Shipping
After Sales Service
FAQ
1.Are your company a trading one or a factory ?
Factory + trade (integration),19 years focusing on test instruments field,14 years exporting experience.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification. ?
3.How to operate the machine ?
We will deliver English manual and video with the machine to you. If you still need our help, please contact us.
4.Does the machine can be customized according to my requirements ?
Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
5.What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 3-10 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
6.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
7.Can you arrange the shipment for me ?
We can arrange the shipment for our clients by sea or by air. Trading terms FOB, CIF, EXW are available.

---
