IEC 61238-1 Cal Bimetal Cable Al. Cu. Lugs in Manufacturers Hex Crimping

Product Description

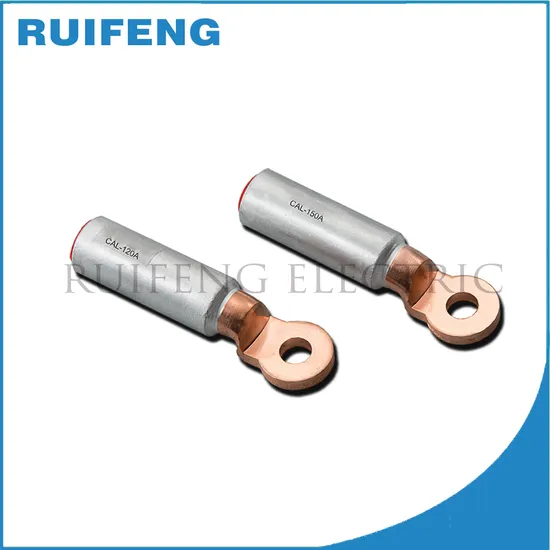

CAL bimetal cable lugs manufacturers
Material:
E-Cu; Al-99.6%

Technical Requirements:
1.Due to the coupling effect when Aluminum Comes in contact with copper, corrosion will happen in the short time.
The best solution is to use aluminum-copper bimetal connectors. It is according with IEC 61238-1.
2.The transition section between aluminum and copper is produced by friction welding, bending 180°,no breaking weld.
3.The marking should be clearly, well-proportioned with the depth of 3mm;
4.Closed angle and edge curl are not allowed at the mouth of the pipe

Type No	Main Dimensions(mm)
	Φ	D	d	L	L1
CAL-16A	11	16	5.5	83	42
CAL-25A	11	16	6.5	83	42
CAL-35A	11	16	8	83	42
CAL-50A	13	20	9	90	43
CAL-70A	13	20	11	90	43
CAL-95A	13	20	12.5	90	43
CAL-120A	13	25	13.5	115	60
CAL-150A	13	25	15.5	115	60
CAL-185A	13	32	17.5	125	60
CAL-240A	13	32	19.5	125	60
CAL-300A	13	34	22.5	135	62
