Portable Digital Rolling Track Gauge

Product Description

Product Description

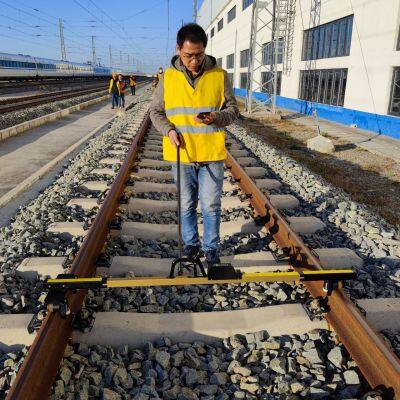

Portable Rolling Track Gauge is mainly used for railway track gauge and super-elevation (cant) . It can be used for track inspection and fine adjustment of rail gauge. This product has the advantages of fast measuring speed, stable pushing rod, easy to carry,and night-time and tunnel work,legible even in direct sunlight are supported.It is an ideal measuring tool for track fine-tuning, track construction,inspection and track laying.
FEATURE：
1. Measure the track gauge, cant without bend over your back.
2. Light weight : around 6.5kg , one person operation.
3. Bluetooth connection, data uploading and analysis system.
4. High working efficiency. Save your man power. ( 1 man with 1 rolling gauge = 4 man with 4 normal digital track gauge)
Model (1435mm)：GJC-JJG0
Track gauge：1410-1470mm
Superelevation measuring range：-185~+185mm
Display mode：OLED display and hand-held terminal display
Supply Voltage：DC3.4V～5.2V (rechargeable battery)
Superelevation division value：0.05mm
Working temperature：-30℃～+55℃
Insulation performance：＞1MΩ
Track gauge division value：0.01mm
Superelevation division value：0.05mm
Track gauge max indication error：≤±0.25mm
Superelevation max indication error：≤±0.3mm
Length：＜1700mm

---
