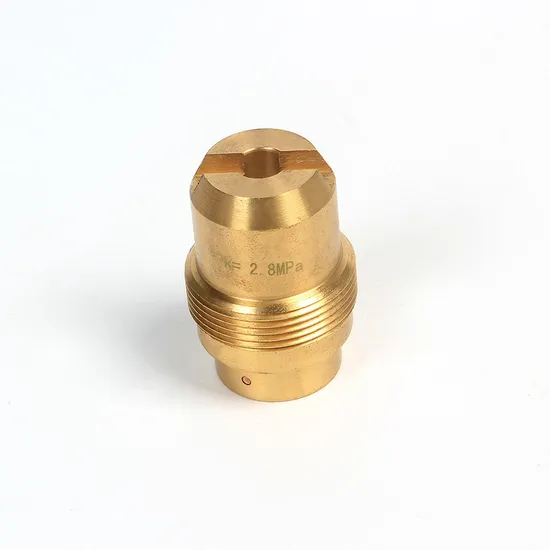

Carrier Pressure Relief Valve Brass Safety Valve

Product Description

Product Description
Techinical datas:
1. The working air pressure: 3.0mpa, hydraulic pressure: 6.5mpa
2. Suitable medium: Ammonia.fluoride
3.Suitable temperature: -50°c+150°c
4.Cast steel valves are used in ammonia and fluoride referigeration compressor widely.
5. They have passed pressure pipe test. steadily performance can be guaranteed.

Model	A	ΦB	ΦC	DN	L	L1
J7G20	155	Φ25	Φ100	Φ20	110	45
J7G32	178	Φ38	Φ120	Φ30	160	70
J7G40	233	Φ45	Φ120	Φ40	180	70
J7G50	257	Φ57	Φ140	Φ50	210	80
J7G65	273	Φ76	Φ160	Φ65	265	100
J7G80	327	Φ89	Φ200	Φ80	320	125
J7G100	378	Φ108	Φ220	Φ100	360	150
J7G125	400	Φ133	Φ250	Φ125	400	175
J7G150	412	Φ159	Φ250	Φ150	500	220
J7G200	483	Φ219	Φ320	Φ200	580	240

Producing line &Testing device
Other type valves !
FAQ:
Q: What is your MOQ
A: 5PCS
Q: Are you a factory?
A: Yes, we are a factory
Q: How about your delivery time?
A: Lots of in store, about 1-3 working days
Q: Is there any discount?
A: Surely, different qty with different discount
Q: Shipment
T/T DHL UPS Fedex
By Sea By Air
Q: Payment
Western Union T/T L/C

---
