Scouring Pad Nonwoven Production Line Textile Carding Machine

Product Description

Product Description

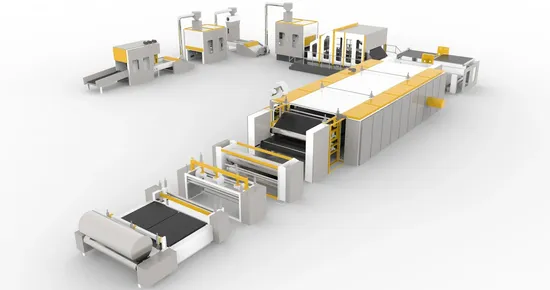

AL--BJB Kitchen Sponge Scouring Pad Oven Nonwoven Fabric Making Machine

This production line is used to make abrasive pads, which are used as cleaning material for homeuse and industrial use.
House use abrasive pad could be used as sponge pad attaching with sponges, used as toilet cleaner attached with handle, also polishing material with certain devices. Different colors, shapes, thickness are all available in same production line.
Industrial use abrasive pad could be used as polishing material for stainless steel, for glasses, for bathtub, floor polishing material, and also Heavy duty scouring pad.

The 1st part: Bale-opener→ Pre-opener →Big cabinet blender →Main opener→ Vibrating fiber Feeder →Double cylinder double doffer double random carding machine →Cross lapper →CBF→pre-needle punching →needle punching → needle punching → cutting &winding machine

The 2nd part: Unwinding→ipping machine → Spraying glue&sand oven → Winding

The 3nd part: Air condenser→ Dust collector→ Recycler → Sheet cutter → punching machine

The 4nd part: Automatic Controlling System

Detailed Images
Name :ALSL-C1D2 2500*1230 single Cylinder double doffe Carding machine Mechanical type: single Cylinder double doffer four clutter;
Output line speed:50m/min;
Main cylinder dia 1230mm with 5 sets working zones,
Four rollers feeding with frequency control, installed with anti-metal alarm and auto-reverse function Installed with 7 sets frequency changer all is individual control, respectively to control the feeding, cylinder, doffer, inner clutter, outer clutter ,output lattice ;
Name: cross lapper
All the horizontal moving rollers adopt seamless steel pipes;
Reciprocating movement with multistage speed control (PLC programmed control, touch screen), 4kw motor frequency control with PLC, 14M synchronous belt drive straight after, reversal time within 20 microseconds to make sure the uniformity;
Bamboo ring lattice, compensation apron by ventilating bamboo to prevent uneven airflow when webbing, motor2.2kw frequency control;
Name:oven machine
Upper lattice &down lattice clamping type feeding , upper lattice electrical lifting with motor 2.2kw (lifting range 120mm),web lattice width 3000mm;
Feeding entrance with horn shape, transmitted chain uses guide roll wheel type;

Company Profile

Certifications






Our Service
Pre-Sales Service
A.L employees have special sense of responsibility and an excellent team spirit,therefore machinery complies to the highest standard in nonwoven industry creating by with individual outstanding components.
Supported by modern technology A.L designed for custom-built machinery and machinery offers an optimum solution for all customer requirements




After-Sales Service
A.L supports our customers service 24 hours A day,7 days work ,Any inquiry could be replied within 1 hour pre-sales and after-sales.
We Believe that only :Best Quality Machine With Innovative Ideas and Excellent After-sale Service:"shall meet your special requirements.y.

---
