High Refresh P1.25/P1.5/P1.8/P2/P2.5 Full Color Indoor LED Display

Product Description

Product Description
Series LED indoor small pitch module supports advanced HDR digital image technology, with high brightness, high contrast and ultra-wide Angle of view, can obtain high-quality display effect in all angles, high reliability, long service life.
The display screen is delicate and real, the brightness is stable and uniform, no flicker, no grain sense Nanoscale response, no ghosting trailing phenomenon Uniform ink color, good consistency 3840Hz ultra-high refresh frequency, the screen display is delicate and smooth Broadcast-level grayscale processing display, image details are more abundant Ultra-wide viewing Angle, the viewing Angle can reach more than 140° It can be stitched in any direction and size, and the picture is uniform without stitching Specification:

Model	LED Display Module	LC15SNP20
Module Composition	Pixel Composition	1R1G1B
	LED Packaging	SMD1515
	Pixel Pitch (mm)	2
	Module Resolution (W×H)	160×80

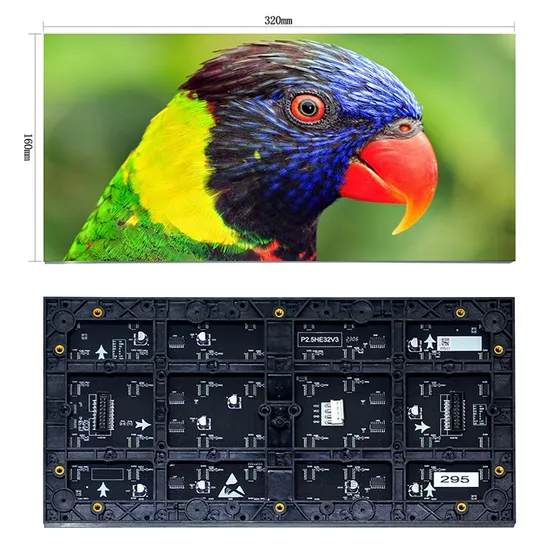

	Module Size (W×H) (mm)	320×160
	Module Power Consumption	≤30W
	Module Input Voltage	4.5V~ 5V
Optical Parameters	Single Point Brightness Correction Function	Support
	Single Point Chroma Correction Function	Support
	Brightness (cd/m2)	500
	Color Temperature (K)	6500 (adjustable from 2000K to 9300K)
	Visual Angle	Horizontal 140°/ vertical 140°
	Light Point Center Distance Deviation	< 3%
	Brightness/Chroma Uniformity	≥97%
	Contrast Ratio	5000:1
Electrical Parameters	Peak Power Consumption (W/m2)	≤600
	Average Power Consumption (W/m2)	≤195
	Power Supply Requirements	AC186 to 264V, frequency 47 to 63 (Hz)
Handling Performance	Driving Method	Constant current drive 1/40 scan
	Frame Changing Frequency	50/60Hz
	Refresh Rate (Hz)	3840
	Gray Level	16384
	Processing Depth (bits)	14
	Brightness Control	Manual/automatic/programmed
Usage Parameters	Lifespan Typical Value (h)	≥50000
	Interface Type	HUB75E port
	Operating Temperature/Humidity Range	-20°C -- 40° C / 10%-65%RH(no-condensing)
	Storage Temperature/Humidity Range	-20°C -- 40°C / 10%-65%RH(no-condensing)

Note: The above parameters are typical values of the product. Different batches of products may vary. The actual parameters of the product are subject to the factory inspection report. The product will be continuously optimized and iterated during the production process, and the product specification sheet will be adjusted at any time. Consult regional distributors before purchasing. For customized products, the specification sheet needs to be reissued. Signal Interface Definition
HUB75E interface

Pins	Signal	Features	Pins	Signal	Features
1	R1	Red data signal	2	G1	Green data signal
3	B1	Blue data signal	4	GND	Power ground
5	R2	Red data signal	6	G2	Green data signal
7	B2	Blue data signal	8	GND	Power ground
9	A	Row decoding signal	10	B	Row decoding signal
11	C	Row decoding signal	12	GND	Power ground
13	CLK	Clock signal	14	LAT	Latch signal
15	OE	Enable signal	16	GND	Power ground
