US$6,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Performance
Efficient Filtration
Name
Automatic Self-Cleaning Filter
Material
SS304, or SS316L
Application
Industrial Filtration
Working Pressure
0.18-1.6 MPa (Solenoid Diaphragm Valve)
Transport Package
Wooden Package
Production Capacity
50000unit/Year
Packaging & Delivery
Package Size
85.00cm * 75.00cm * 160.00cm
Package Gross Weight
360.000kg
Product Description

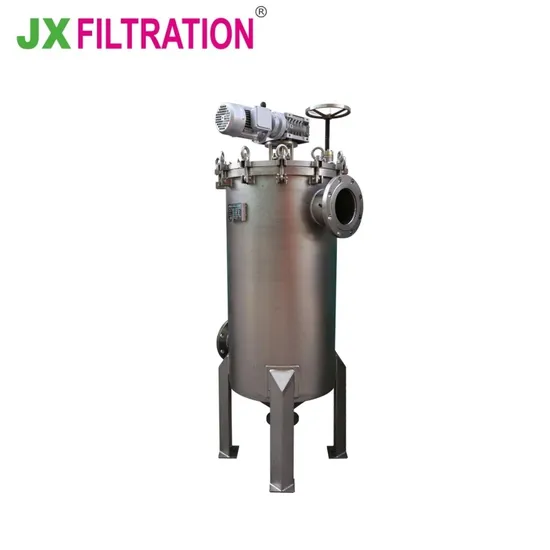

Product Description Introduction
The automatic self-cleaning filter has functions of automated cleaning and drainage. It can be controlled by pressure difference or time and manual operation. There are many advantages, including high filtration accuracy, short self-cleaning time, low cleaning water consumption, and small pressure loss. It can provide reliable quality assurance for your water system.
If there is a leak, we will replace the equipment free of charge.
Technical Parameters
Material of Construct
Filtration Accuracy Conversion
| Micron (μm) | 10 | 25 | 30 | 40 | 50 | 80 | 100 | 120 | 150 | 200 | 400 | 800 |
| Mesh | 1500 | 650 | 550 | 400 | 300 | 200 | 150 | 120 | 100 | 80 | 40 | 20 |
Detailed Photos Brush type
Scraper type
Electric Hydraulic Pneumatic
Backwash Filter
Raw Material Test
Certifications
Company Profile JXFILTRATION® JX Filtration (China) Co., Ltd is a professional manufacturer of Wedge Wire Screen (Wedge Wire Screening), Automatic Backwash Filter, Rotary Drum Screen, Bag Filter Housing, Volute Dewatering Press. With highly mature production lines, we can provide high-quality and inexpensive products in large quantities.Because of the difference in raw material price, factory wages and other considerations, we have set up three factories in major cities of China to ensure our product quality and price advantage.
Our Belief: Your trust is priceless!
Our Advantages Professional Services FAQ Question 1: Are you manufacturer?
Yes, we are the manufacturer since year 2014.
Question 2: Can you provide OEM service?
Yes, we have more than 10 years of OEM experience and provide this service. Question 3: Can you provide sample? Free or chargeable? Yes, we can provide free sample for filter elements, all filter housings are chargeable.
Question 4: Does the product support customization?
Products can be customized base on our current mould.
Question 5: What is the payment terms?
50% advance,balance 50% before shipment(FOB terms).
>>
