2024 Mingju 1000X550mm Worktable CNC Vertical Machining Center Vm855

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
VM855
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
Customized
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
X/Y/Z Axis Travel
800/550/550 mm
Distance From Spindle Nose to Table
135-685 mm
Guideway Type
Three-Linear-Guideway
Worktable Size(L*W)
1000X550 mm
Max. Worktable Load
500 Kg
Spindle Taper
Bt40
Spindle Speed
8K/10K
Transport Package
Customized
Specification
2720x3450x2650
Trademark
Mingju
Origin
China

Product Description

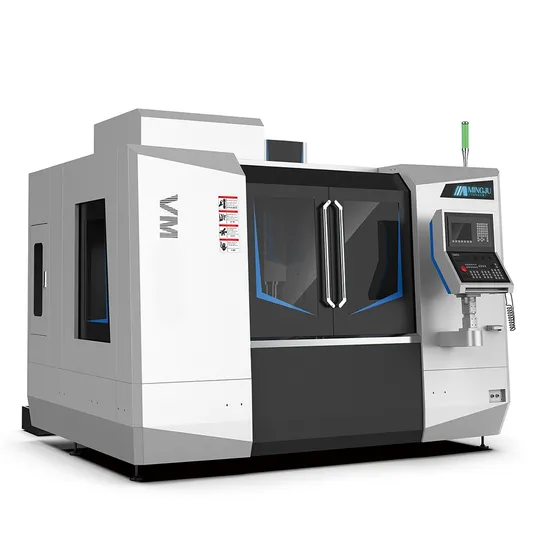

VM-855 Universal Three Linear Guideway Vertical Machining Center
Product Parameters
Model VM-855
Item Specification Unit
Travel X/Y/Z Axis mm 800/550/550
Distance from Spindle Nose to Table mm 135-685
Guideway Type - Three-linear-guideway
Worktable Worktable Size (L*W) mm 1000x550
Max. Worktable Load kg 500
T-Slot (number x size x distance) mm/mm/mm 5-18-90
Spindle Spindle Taper type BT40
Spindle Speed rpm 8k/10k
Spindle Motor Power kw 7.5-11
Spindle Drive Type - belt
Feed X/Y/Z Axis Rapid Feed m/min 48/48/36
Cutting Feed Speed mm/min 1-10000
Tool Magazine Magazine Type - Arm type
Tool Holder Type type BT-40
Tool Capacity tools 24
Max Tool Diameter (adjacent tools) mm Φ80
Max Tool Diameter (no adjacent tools) mm Φ150
Max Tool Length mm 300
Max Tool Weight kg 8
Tool Change Time sec 3.5
Accuracy Positioning Accuracy mm ±0.005
Repeat Positioning Accuracy mm ±0.003
Power Power Requirement kVA 25
Air Pressure Requirement kg/cm² 6-8
Dimensions Length/Width/Height (including water tank) mm 2720x3450x2650
Weight (including water tank) ton 5.5

Other Recommend Model
Product Description
Introduction
This series of products is equipped with mainstream components from the industry, featuring FANUC-β series high-speed motors. It balances high speed, high precision machining, and cost-effectiveness, making it suitable for the regular machining needs of various products.
Structural DesignThe structural design of the VM series is optimised by the most advanced Finite Element Analysis (FEA) method in the market, and a large number of reinforcing bars are used to optimise the internal stress structure of the whole machine, ensuring the steeliness and thermal stability of the whole machine.

Structure Features
The base is wide and thick, and the column is box-type structure with good rigidity.
The spindle box is reinforced with ribs inside, and the contact length between the column and spindle box is reasonable to provide stable support for the spindle.

The three-axis guideway adopts the original precise linear guideway with high rigidity, low noise and low friction coefficient, which is suitable for high-speed and high-precision machining.

3-axis motor and precision high-speed ball screw direct drive and assembly, enhance rigidity and improve precision. Support high-speed displacement, saving up non-processing time.

Spindle can be selected according to the processing needs of the belt type or direct connection type high-speed spindle, no matter in the high-speed or low-speed milling and drilling, can maintain stable accuracy, cutting efficiency is greatly improved.
Bed, Column And Saddle
The bed, column, and saddle are composed of Meehanite HT300 grade cast iron, which includes very high dampening characteristics. The one piece bed casting and column are stress relieved to ensure machine geometry is maintained throughout the life. Wide spacing of the linear guideways ensures optimal support for the table and saddle in full travel of each axis. Heavily ribbed castings provide superior dampening for high speed machining and aggressive milling.
Application
Widely used in aerospace, automotive parts, electrical instruments, motorbikes, tools, hardware, electrical machinery and other industries, moulds, parts processing. It can efficiently process small and medium batches of workpieces and manufacture complex and high-precision parts. Company Profile
