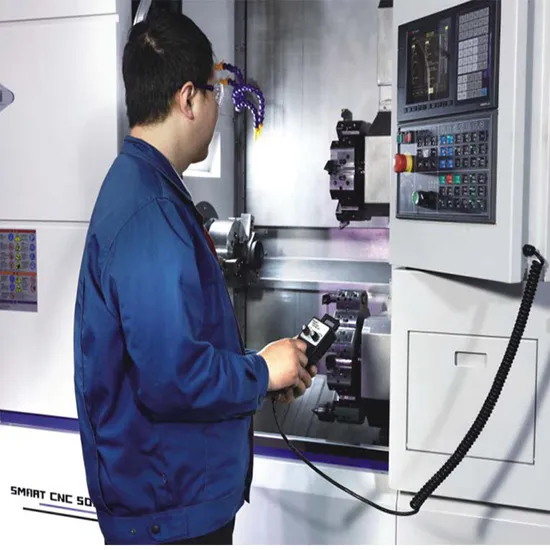

Hydraulic Dashboard Multi Turrets CNC Turning Center 260

Product Description

CNC Multi Turrets Turning Center
Expanded machine functionality promises reduced cycle times. Suitable for a broad range of production processes. This machine's development was driven by the demands of entrepreneurial manufacturers. The CNCHardware GT260V combines the highest levels of reliability, accuracy and efficiency. As a result of large production volume and well managed supply chain, CNCHardware has produced a machine that operates at the highest levels of performance providing you with a powerful weapon for improving your competitive advantage. Hydraulic Dashboard Accessories & Tool Box Alarm Lamp Coolant Tank Central Auto Lubrication System Adjustable Control System Panel

1	Cartridge Type Spindle The CNCHardware cartridge spindles are sealed within a stainless steel housing as a complete unit. Easily replaceable and securely matched with a machine headstock that provides the foundation for better spindle dynamic balancing accuracy. Works well in high speed applications.
2	Direct Mounted Spindle The CNCHardware direct mounted option matches the headstock manufacturing and assembly for optimum accuracy. Each manufactured headstock and spindle unit is assembled in a clean room under temperature controlled conditions. The larger sized spindles are supported by a double row of tapered cylindrical roller bearings, plus angular ball bearings and a double row cylindrical roller bearing in the rear for increasing rigidity. Small size spindle design adopts high precision angular ball bearing reduces noise and increases accuracy.
3	Direct Driven Spindle This electric spindle (Built-In Motor) offers high acceleration and deceleration, which shortens cycle times and increases efficiency. In addition, a machine with this spindle will operate with less vibration and lower noise. It is excellent for applications where finish and extreme accuracy are important.

Servo Turret High Speed The turret uses servo motors to shift the tool position which reduce tool change time essentially. Heavy Duty The turret uses hydraulic system to clutch. Powerful tool clamping minimizes tool tip deviation due to load, which displays excellent performance during heavy duty cutting. High Accuracy The turret uses high-precision tooth couplings for accurate positioning. As double channel system with double turrets, all those advanced technology enlarged 2 times on GT260V. Machining cycle time is reduced, which improves productivity tremendously.

Specifications
		Unit	GT260V
Capacity	Chuck Size	inch	8"
	Max Swing Dia. Over Bed	mm	Φ580
	Max. Length of Workpiece	mm	340
	Max. Swing Dia. Over Slide	mm	Φ210
Spindle	Spindle Bore	mm	Φ62
	Max Dia. of Through Hole	mm	Φ52
	Spindle Nose	type	A2-6
	Spindle Speed	rpm	4000, (2000 optional)
	Main Motor Power	kW	11 / 15
Axis	X1 Axis Travel	mm	160
	Z1 Axis Travel	mm	350
	X2 Axis Travel	mm	160
	Z2 Axis Travel	mm	350
	X1/Z1 Rapid Traverse	m/min	20
	X2/Z2 Rapid Traverse	m/min	20
Turret	Turret1 Stations		8
	Turret2 Stations		8
	OD Tool Shank size	mm	25
	Boring Bar Size	mm	Φ40
Others	Slant Bed Degree		90°
	Guideway Type		Linear Motion Guideway
	Power Capacity	KVA	20KVA
	Overall Dimension	mm	2850 x 1850 x 2300mm
	Weight (roughly)	Kg	7000Kg

---
