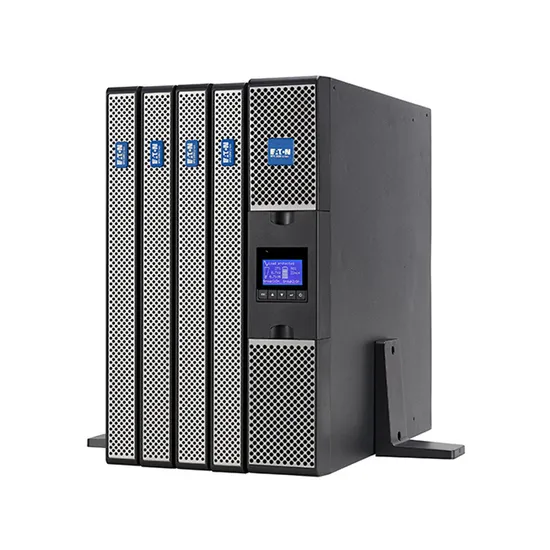

Eaton 9PX Lithium-ion UPS technical specifications
| Technical specifications | 1000 | 1500 | 2200 | 3000 |
| Rating(VA/W) | 1000VA/1000W | 1500VA/1500W | 2200VA/2200W | 3000VA/2400W(3000VA/3000W
with EBM) |
| Format | RTZU (tower/rack 2U) | RTZU (tower/rack 2U) | RTZU (tower/rack 2U) | RTZU (tower/rack 2U) |
| Electrical characteristics |
| Technology | On-line double conversion with Power Factor Correction(PFC) system |
| Nominal voltage | 200/208/220/230/240V |
| Input voltage range | 176-276V without derating(up to 100-276V with derating) |
| Input frequency range | 40-70Hz, 50/60Hz autoselection, frequency converter mode |
| Efficiency | up to 91.5% in online mode(up to 97.5% in Hi-efficiency mode) | up to 92.5% in online mode(up to 97.5% in Hi-efficiency mode) | up to 93.5% in online mode(up to 98% in Hi-efficiency mode) | up to 94% in online mode(up to 98% in Hi-efficiency mode) |
|
| Connections |
| Input | 1 IEC C14(10A) | 1 IEC C20(16A) |
| Outputs | 8 IEC C13(10A) sockets | 8 IEC C13(10A) sockets+2 IEC C19(16A) sockets |
| Switched outlet group | 2 outlet groups | 2 outlet groups |
| Batteries |
| Typical backup times* | 300W 500W 800W 1200W 1800W 2400W |
| 9PX1000 | 45 30 19 |
| 9PX1000+1 EBM/4EBM | 114/321 76/210 49/137 |
| 9PX1500 | 45 30 20 13 |
| 9PX 1500 +1EBM/4EBM | 114/321 76/210 52/145 33/92 |
| 9PX2200 | 66 45 30 21 14 |
| 9PX2200 +1EBM/4EBM | 170/475 112/305 78/205 52/148 35/98 |
| 3PX3000 | 68 46 30 21 14 10.5 |
| 3PX3000+1EBM/4EBM | 184/516 120/320 80/215 54/153 37/104 28/78 |
| Battery | Lithium-ion battery (LFP) with 8 to 10 years service life, automatic recognition of external battery modules (EBM) |
| Communication |
| Communication ports | 1 USB port + 1 serial RS232 port+ 1 mini-terminal block for remote ON/OFF+ 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay |
| Communication slot | 1 slot for Gigabit Network management card (included in netpack versions), Industrial Gateway Card (Modbus TCP/RTU), or Relay card. |
| Operating conditions, standards and approvals |
| Operating temprature | 0 to 40ºC |
| Typical noise level | 35dB | 40dB |
| Safety | EC/EN62040-1,UL1778,CSA 22.2 |
| EMC | IEC/EN62040-2,FCC Class B, CISPR22 Class B |
| Approvals & markings | CE/CB report(TUV)/EAC/Energy Star |
| Dimensions H×W×D in mm/ weight |
| | 1kVA | 1.5KVA | 2.2kVA | 3kVA |
| UPS | 86.5×440×450/15.6Kg | 86.5×440×450/15.8Kg | 86.5×440×605/22.1Kg | 86.5×440×605/22.8Kg |
| EBM | 42.9×438×448/12.0Kg | 42.9×438×448/12.0Kg | 42.9×438×603/17.4Kg | 42.9×438×603/17.4Kg |
| Customer service and support |
| Warranty | 5 years full warranty (electronics, internal batteries and EBM) |
| *Backup times are approximate and may vary with equipment configuration, battery age, temperature, etc. |
