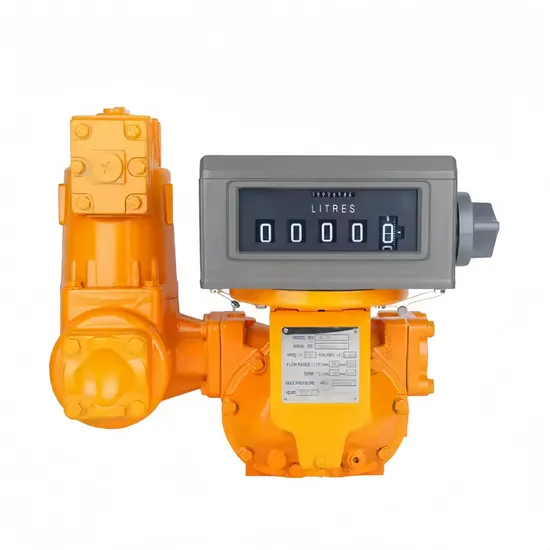

Pd Flow Meter Diesel Fuel Oil Mechanical Counter Flowmeter

Product Description

Product Description Positive Displacement Flow Meters (PD flow meter) offer the ultimate in measurement accuracy for custody transfer of petroleum products, aviation fuels, LPG, and a broad range of industrial liquids.
PD flow meters incorporate a unique design, presenting minimal intrusion in a flowing stream of liquid, as well as minimal pressure drop through the meter. It consists of a housing in which three synchronized rotors turn with no metal-to-metal contact. Hydraulic sealing is accomplished by a stationary boundary layer of liquid, not by the wiping action of mechanical parts.
Products Features

Model	ATPD-40 Series	ATPD-50 Series	ATPD-80 Series	ATPD-100 Series	ATPD-150 Series
Size	40mm/1.5"	50mm/2″	80mm/3″	100mm/4"	150mm/6" and 100mm/4" for option
Flow Range	25-250L/mi n	35-550 L/min	115-1150 L/min	170-1700L/min	300-3000L/min
Volume Per Revolution	0.309L	0.681L	1.839L	5.102L	14.87L
Max Pressure	150PSI(10.5Bar)
Accuracy	±0.2%
Repeatability	±0.05%
Standard Measurement	Liter/ US Gallon/ IMP Gallon
Package	Wooden Case	Carbon Box; Wooden Case	Wooden Case	Wooden Case	Wooden Case
Dimension	60 X50X50 cm	C:51X46X48cm; W:53X48X51cm	60x52X60cm	75X63X73cm	80X65X79cm
Gross Weight	35kg	C:28kg; W:38kg	55kg	97Kg	180kg

Certifications
Q: How long is your delivery time? A: it depends on the quantity. Normally it's about a week to two weeks. Q: How to get quotation? A: Please tell us the pipe diameter, measuring medium, flow rate, temperature, pressure, connection type and accuracy of the product you need, we will choose the most suitable product for you.

---
