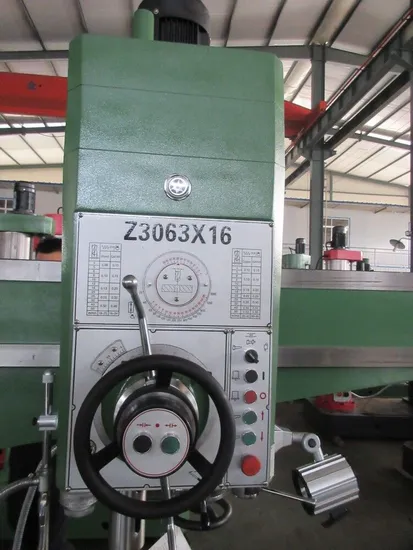

Hydraulic Radial Drilling Machine Z3063*16

Product Description

The Radial Drilling Machine Model Z3063× 16, which has a wide range of application, are suitable for drilling, counter-boring, reaming, spot-facing and tapping on large and medium size object. It has many strong points as follows: The key parts were adopted high strength cast iron and special steel, this make it has more stability. It is more durable because it is processed through first-class technic. After the continuous treating by specialized equipment, it guarantees the basic parts have excellent quality. The hydraulic pressure system tightens each part greatly. 16 range of spindle turning speed for your choice makes it drilling highly effectively. All the hydraulic control equipments concentrate in the headstock, which facilitates the operation greatly. Novel design of outward appearance and painting demonstrate the time style.
Standard accs: Morse taper reduction sleeves Drift, Reducing sleeves
Z3063*16 Hydraulic radial drilling machine
Hydraulic clamping
Hydraulic transmission
Hydraulic preseletion
Electrical machinery double insurance
Specificaiton

Max.drilling diameter	63mm
Column diameter	350mm
Distance between spindle axis and column	350-1250mm
Distance of headstock horizontal movement	1250mm
Distance spindle nose and working surface of base	320-1370mm
Rocker arm lifting distance	580mm
Spindle travel	315mm
Spinlde taper	MT5
Range of spindle speeds	25-2000
Range of spindle feeds	0.04-32mm
Maximum permissble feed pressure of spindle	18000 N
Maximum permissible torque of spindle	500mm
Rocker arm lifting speed	0.02m/s
Rocker swing angle	+- 180
Dial rotates the dring depth	122mm
Spindle motor power	5.5KW
Arm elevating motor power	1.5KW
Hydraulic clamping motor power	0.75KW
Cooling pump motor power	0.09kw
Machine weight	4200KG
Overall dimension	2650*1100*3200

---
