1200mm Hydraulic Stone Cutting Splitting Cutter Blade Electric Wall Cutting Saw Machine

Product Description

Product Description

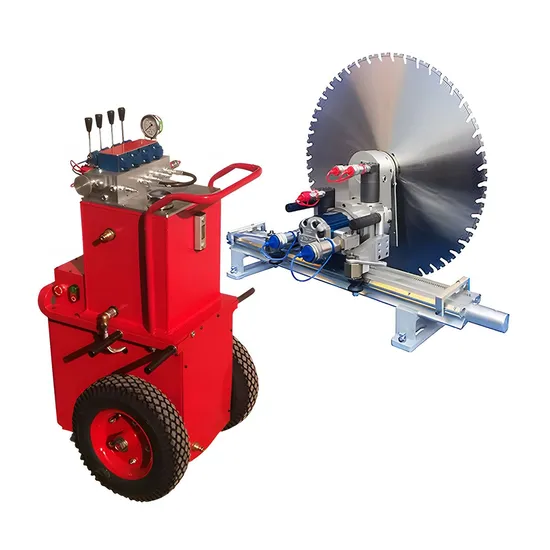

1200MM hydraulic stone cutting splitting cutter blade electric wall cutting saw machine
Wall cutting machines are mainly used for cutting or seaming reinforced concrete walls, brick walls or stone materials, renovation, reinforcement, and design changes of buildings or old buildings. They can cut large-area walls such as door holes, windows, or elevator holes. cutting. The structure is damage-free and formed in one go. In addition to avoiding the damage to the building structure caused by traditional hammering construction, it also greatly saves time, material resources, manpower and expenses.
According to power, it is mainly divided into hydraulic wall saws, high-frequency wall saws and electric wall saws.
Features of Wall Saw Machine
1. Small size, light weight and easy to transport; light weight, high power and strong adaptability are the biggest advantages of this machine and equipment, filling the gap between the heavy weight of hydraulic wall saw machines and the low power of electric wall saw machines.
2. Remote control operation, visual intelligent cutting, safe and reliable; split design, quick disassembly, and can be installed and operated independently by one person.
Product Parameters

Model	YG-600
Max.power	25KW
Motor cooling method	Air cooling
Rated voltage	380V 50Hz three phase
Pressure stages	3
Max.operating pressure	200bar/20Mpa
Oil flow rate	30-80L/min
Dimensions	600mm*650mm*1050mm
Weight	220kg
Wall saw head specifications
Model	YG-600
Saw blade diameter	800-1400mm
Cutting depth	620mm
Max.working pressure	180bar/18Mpa
Max.oil flow rate	100L/min
Rotation speed	450/950/1300Rpm
Dimension	400mm*420mm*400mm
Weight	38kg

Detailed Photos
