Innovative Surveillance Radar for Comprehensive Low Altitude Monitoring Needs

Product Description

Low Altitude Multidimensional Defense System In Key Areas
The low altitude defense system in key areas is a state-of-the-art solution designed to include essential components such as surveillance radar, passive radio detection equipment, multispectral electro-optical cameras, fixed unmanned jamming aircraft, individual handheld jamming guns, and sophisticated data acquisition and processing centers. This system is crafted for easy installation and disassembly, ensuring seamless and flexible deployment. It allows the establishment of meticulously defined warning areas, alarm areas, and no-fly zones within its detection perimeter. By integrating a multitude of advanced detection technologies, this system offers unparalleled real-time monitoring capabilities across multiple frequency bands with comprehensive, all-directional coverage, ensuring no blind spots remain. It stands as an all-encompassing solution to thwart the unauthorized intrusion of unmanned aerial vehicles, powered parachutes, gliders, and helicopters, safeguarding critical areas such as airports, oil and gas fields, oil depots, border lines, nuclear power plants, bridges, reservoir dams, vital government agencies, major conference venues, and more.
performance

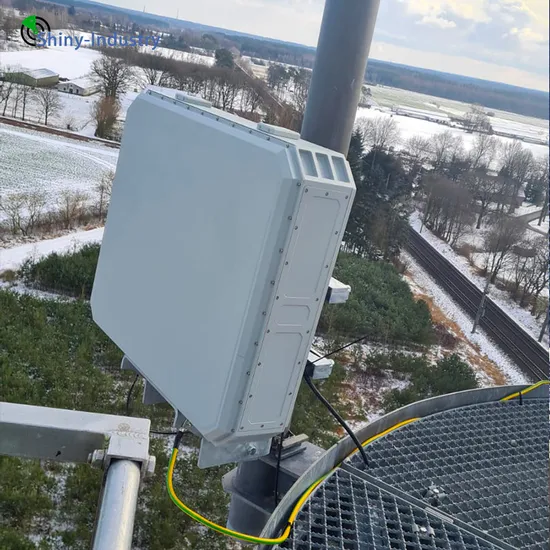

The LW-R25-K three-coordinate early warning radar exemplifies cutting-edge design and superior performance as a low altitude small target surveillance radar. It incorporates a suite of advanced modern radar technologies, including fully coherent pulse Doppler technology, microstrip patch array antenna technology, elevation digital beamforming technology, simultaneous multi-beam reception technology, single pulse angle measurement technology, and TWS technology. This array of technologies enables active phase scanning capabilities across both azimuth and elevation dimensions. Boasting features such as rapid beam scheduling, an impressively high data rate, outstanding angle resolution, and precise height measurement, it is perfectly suited for air surveillance in strategically significant areas including border defense, coastal defense, oil and gas fields, oil depots, bridges, reservoirs, and nuclear power plants.
Technical Parameter

project	index
Working frequency range	X-band: 9.22GHz-9.48GHz
minimum range	1000m
Low altitude target monitoring mode	≥ 25km (RCS=1m2 coverage height of 2600m)
measurement accuracy (RMS)	Distance measurement accuracy: 10m azimuth angle measurement accuracy: 0.2 ° elevation angle measurement accuracy: 0.3 °
Electric scanning range	Orientation: ± 45 ° Pitch: ± 10 °
Tracking data rate	≤3s
Multi objective capability	≥ 200 batches
anti-interference ability	Anti ground clutter improvement factor>45dB Anti meteorological clutter improvement factor>30dB Equipped with sidelobe masking function
reliability	MTBF>5000h
consumption	≤600w
size	650mmx600mmx200mm
weight	≤65Kg

---
